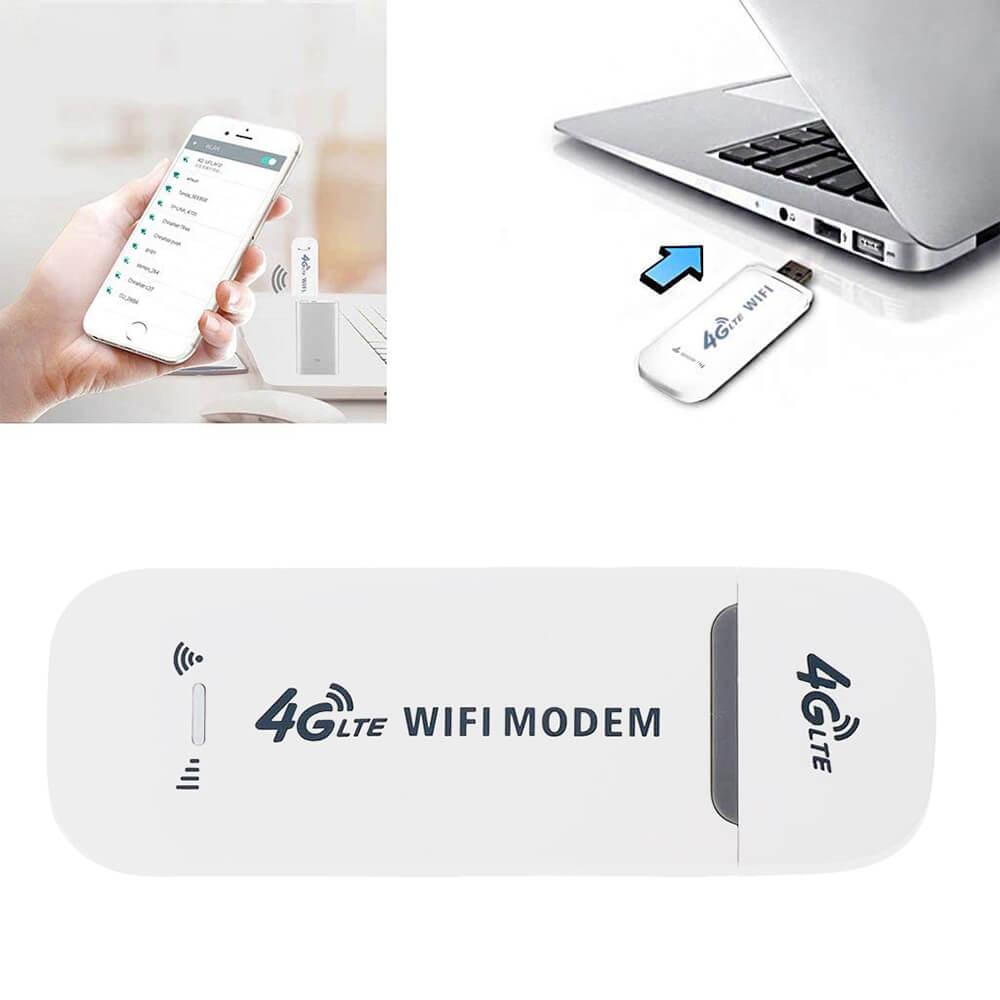

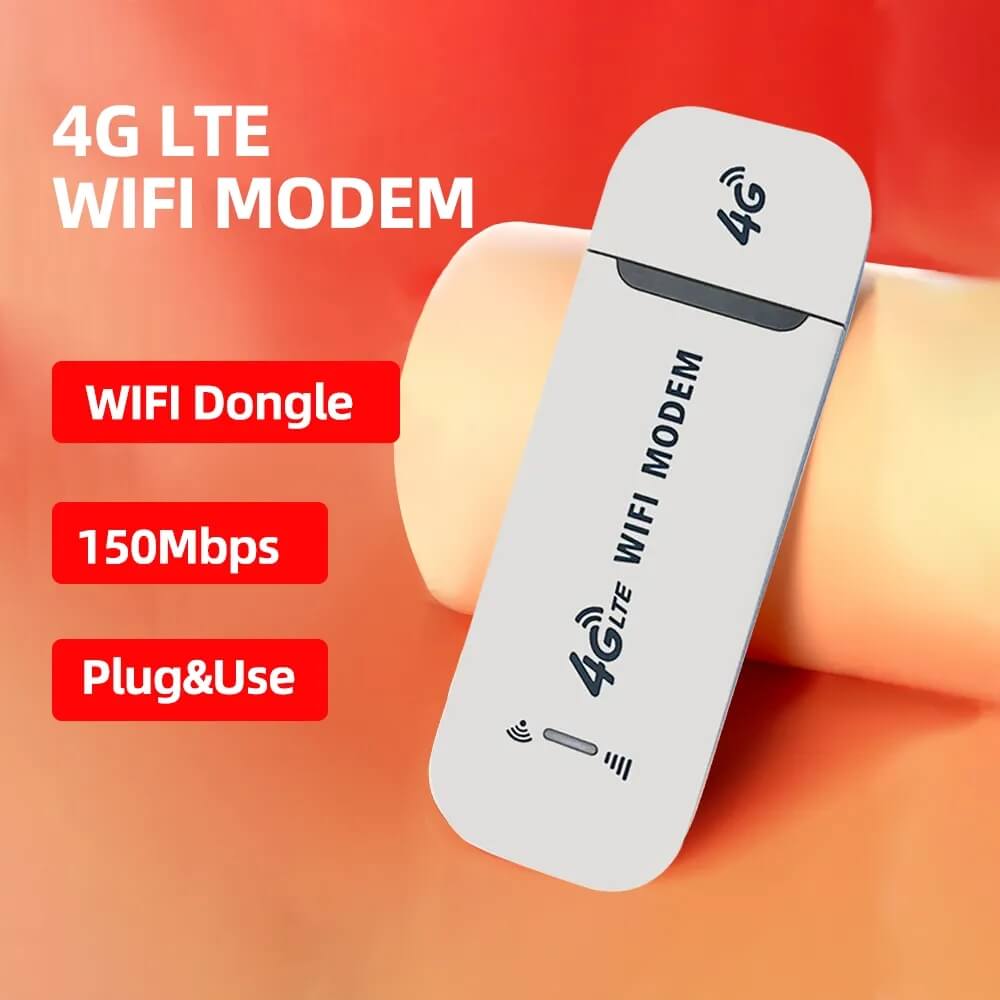

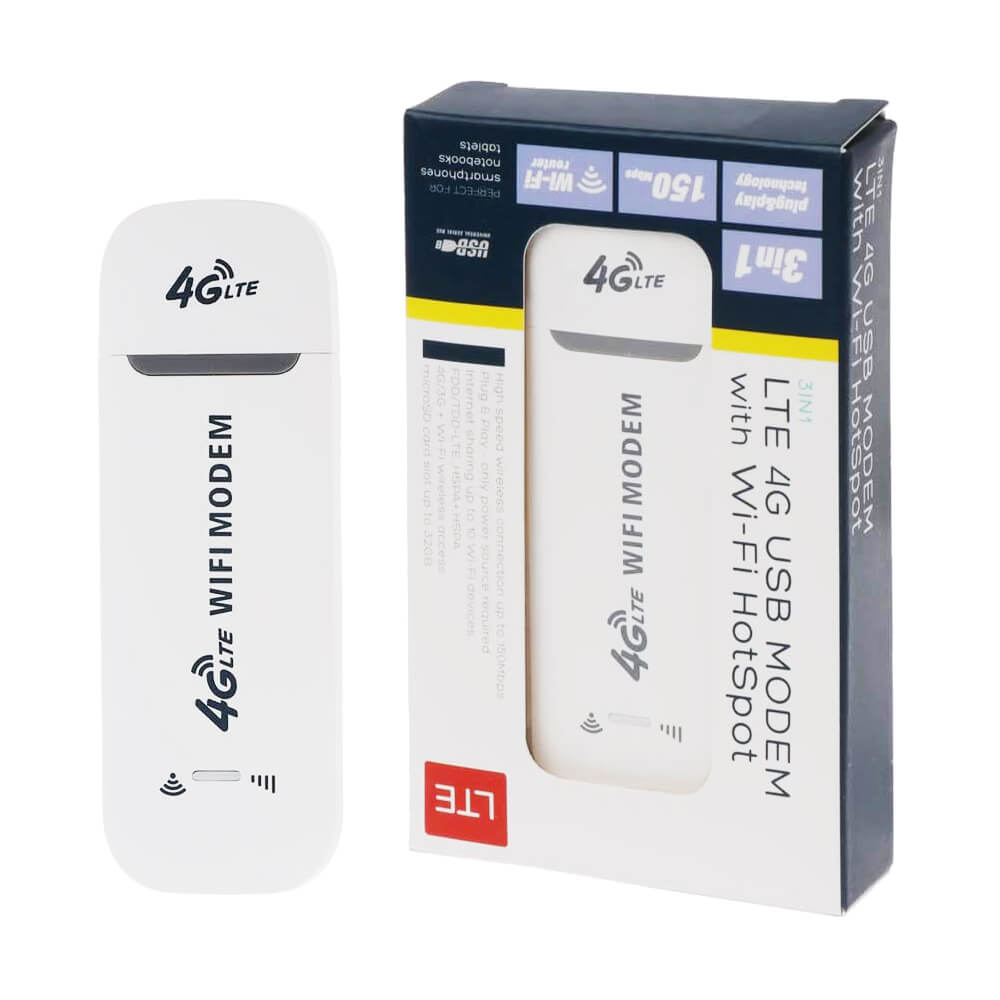

PIX-LINK 4G Wifi Router High Speed USB Wifi Modem 4G LTE 150M Portable Mini Router with SIM Card Slot
- Compatible to various chargers
- Fast Internet speed
- Fashion design
- Professional encryption safe internet surting
Overview
Specifications
| Item | ||
| Model | U96 | LTE WiFi dongle |
| Chipset | Chipset | Qualcomm MSM8916 |
| Technical Standard | 4G-LTE | Up to 150 Mbps DL and 50 Mbps UL |
| 3G-UMTS | Up to 42 Mbps DL and 5.76 Mbps UL(DC-HSPA+ mode) | |
| WLAN | 802.11 b/g/n | |
| Frequency Band | FDD/TDD-LTE | B1.B3.B5 |
| UMTS | B1/B5（combination depend on LTE bands） | |
| WLAN | 2.4GHZ | |

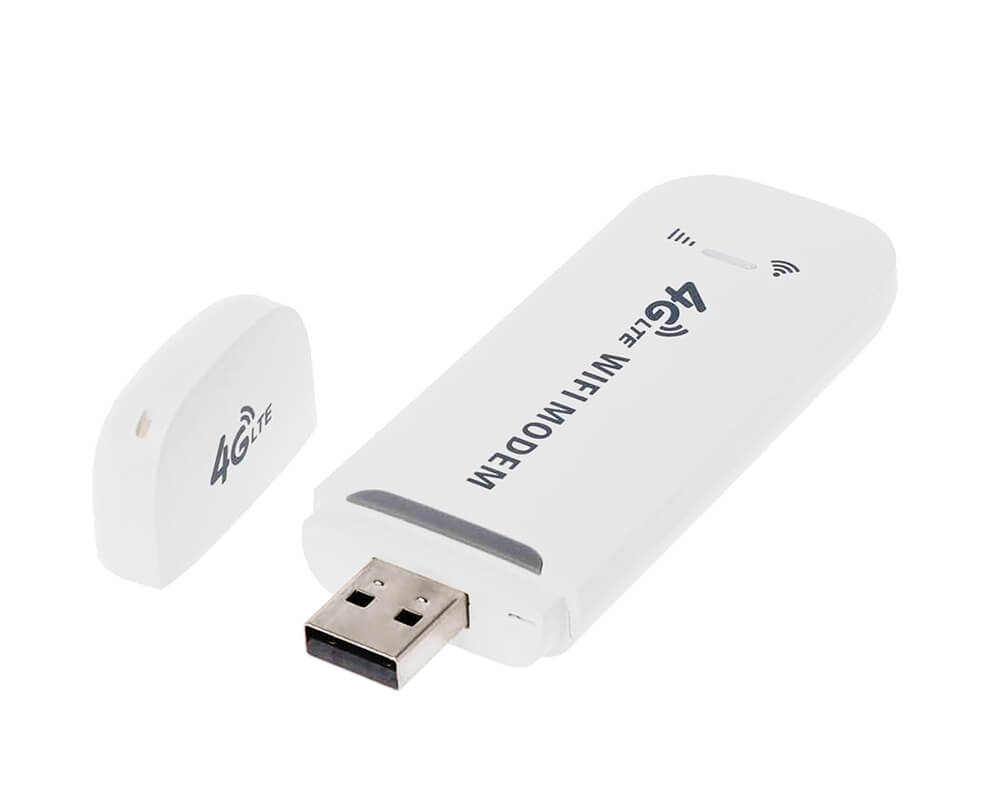

| External Interface | USB Type | Type A USB 2.0 |

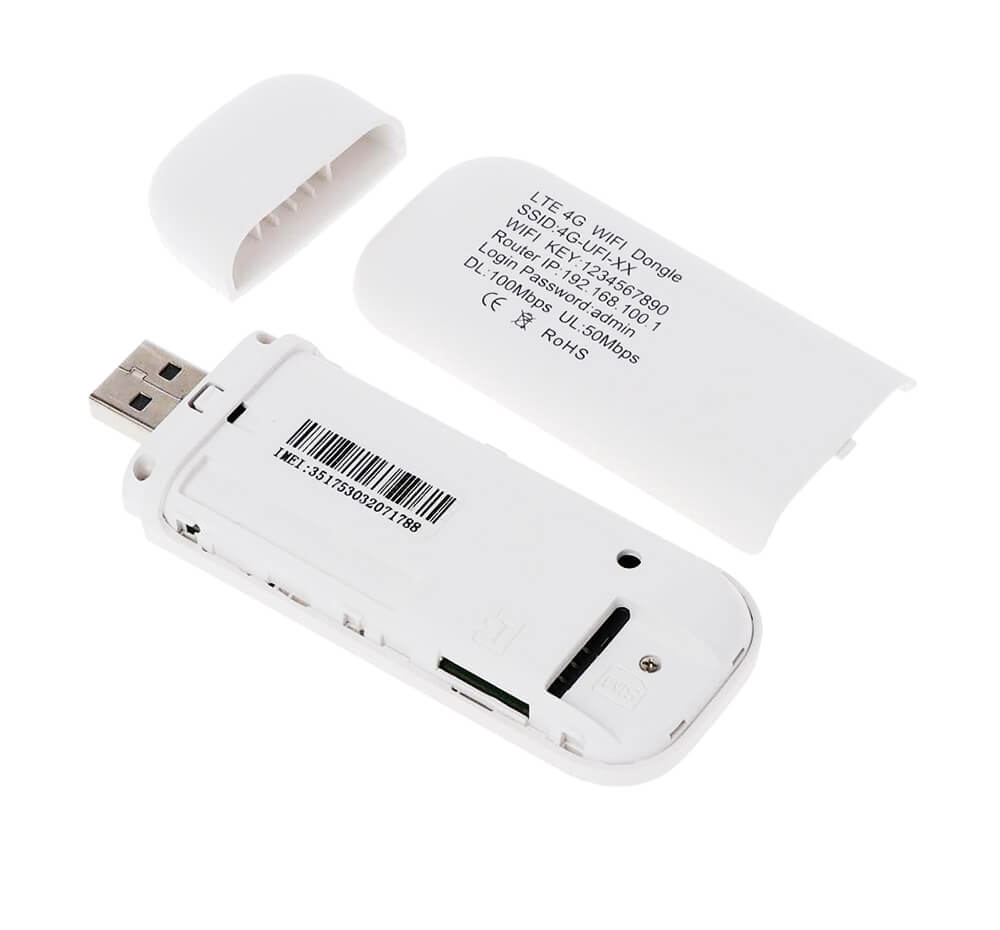

| SIM/USIM Card | Micro SIM card slot | |
| Power button | Long press 3 seconds to power ON or OFF | |
| RESET button(pinhole) | Long press 3 seconds to reset to factory setting | |

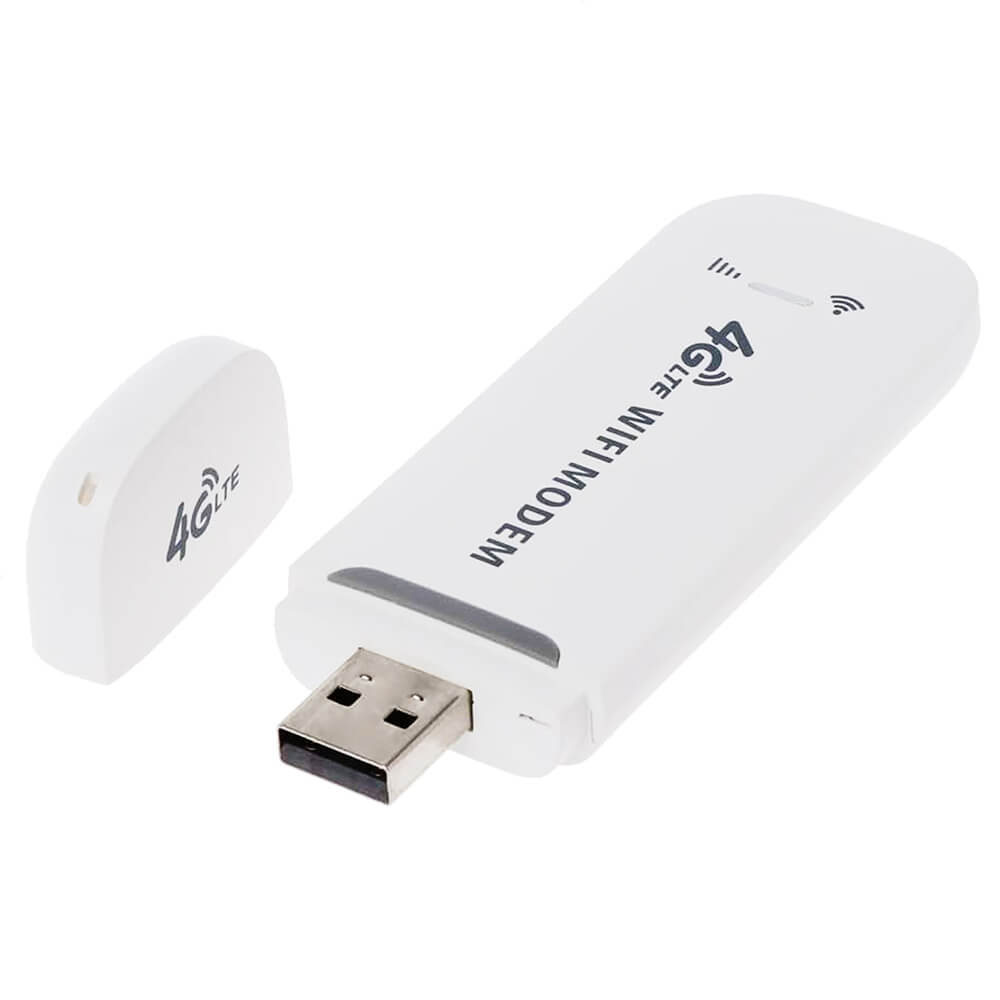

| Main Features | Form Factor | USB stick |
| Visual Indicator(LED) | LED dio display working status （signal/data flow） | |
| Languages Supported | English,Chinese or more language requested | |
| Operate System Supported | Win XP/ 7 /8/10, MAC OS, linux, Android （AP mode） | |
| Win XP/ 7 /8 /10（USB modem ） | ||
| Power supply | Input | DC +5V/≥1A |
| WLAN | Frequency | 2400MHz～2483.5MHz |
| Channels | 1 ~ 13 | |
| Users | 8 | |
| Manage mode | Web UI | 192.168.43.1 |
| Antenna | Main antenna | Build-in LTE/UMTS main antenna |
| DIV antenna | Build-in LTE/UMTS antenna | |
| WLAN antenna | Build-in WiFi antenna | |
| Certification | ROHS | Supported |
| CE | Supported | |
| CCC | Supported | |
| Other | Could be supported upon requested | |

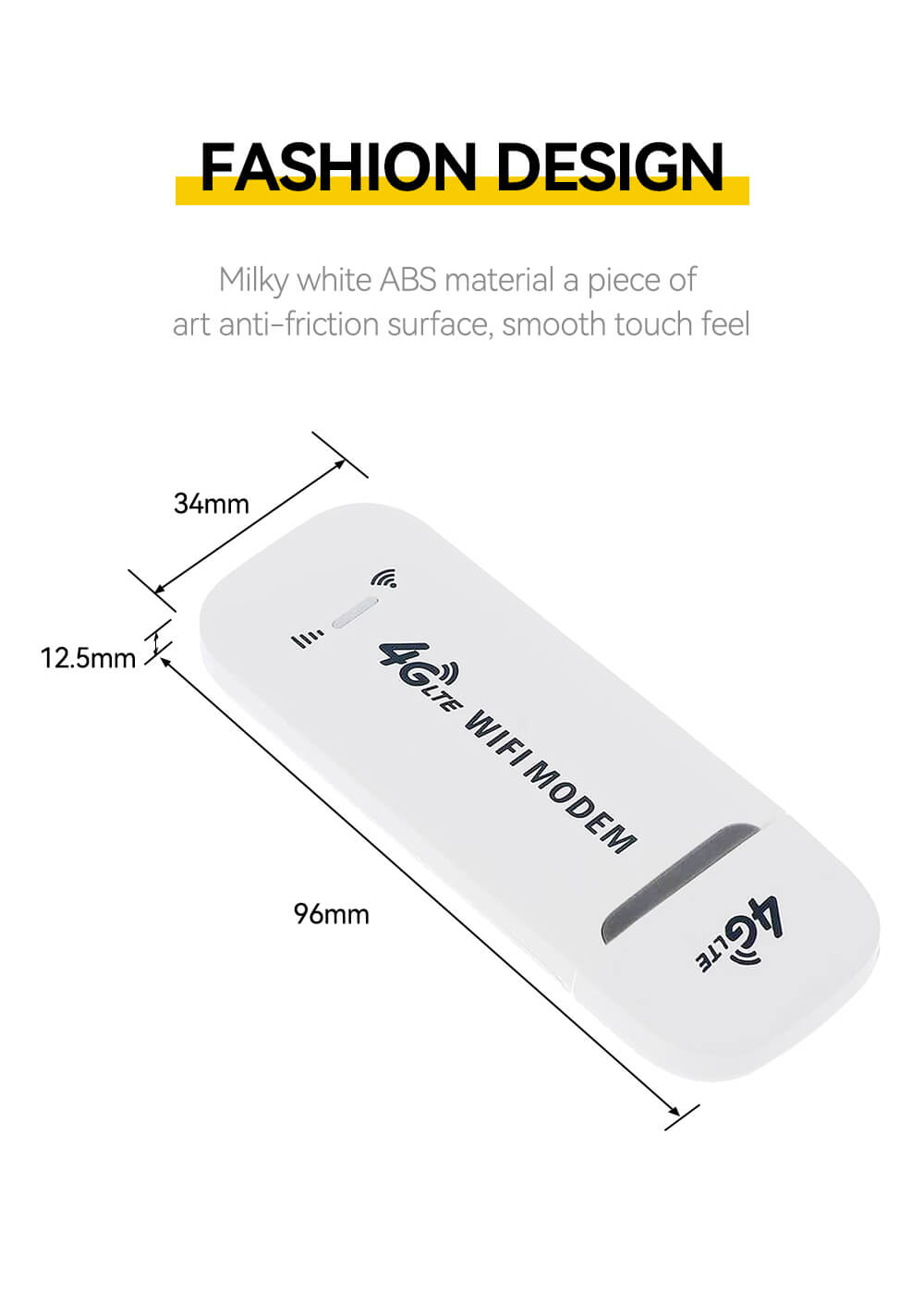

| Dimension | L * W * H | 96 * 34 * 12.5 MM |

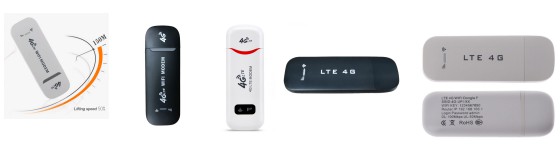

| Outward |  | |
