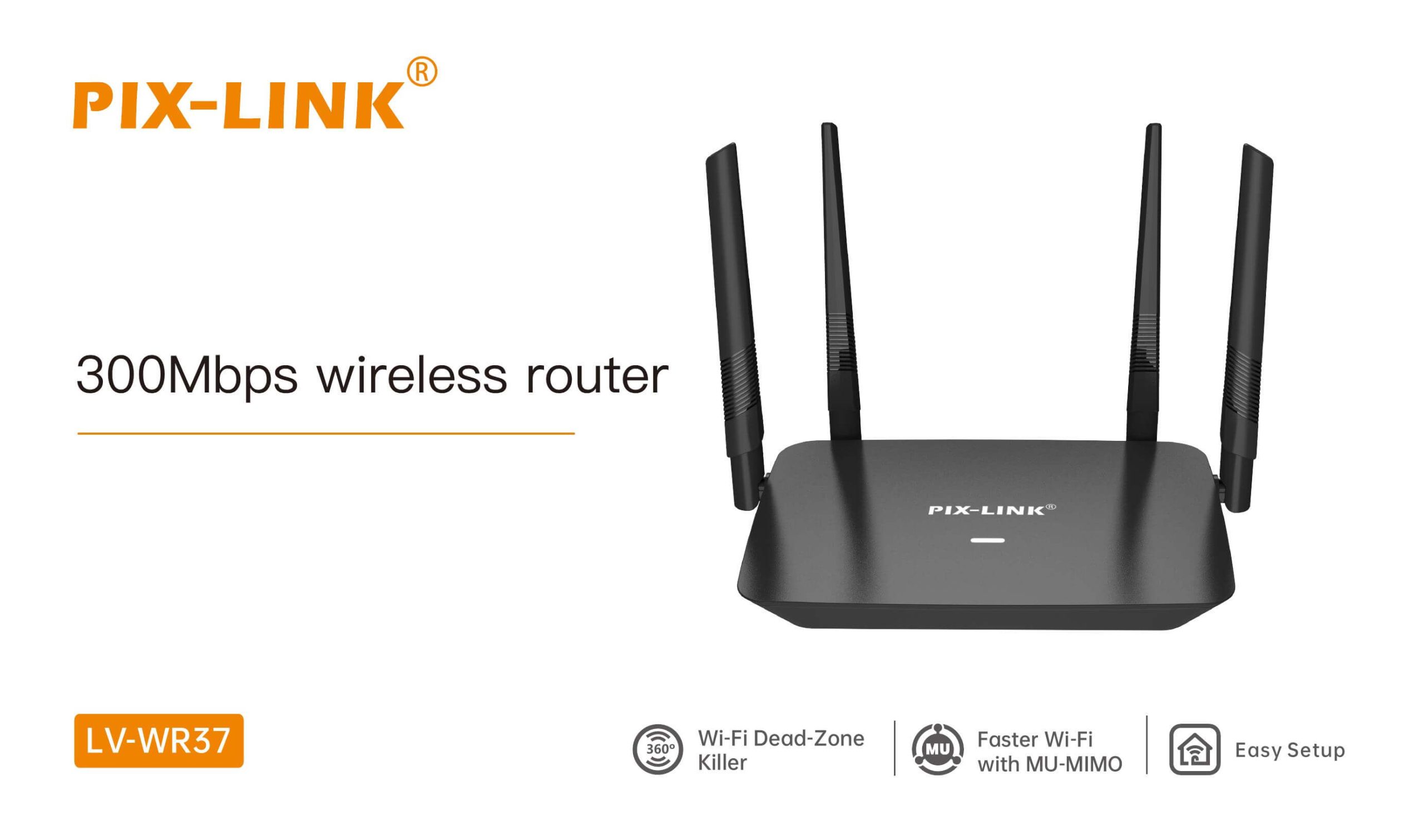

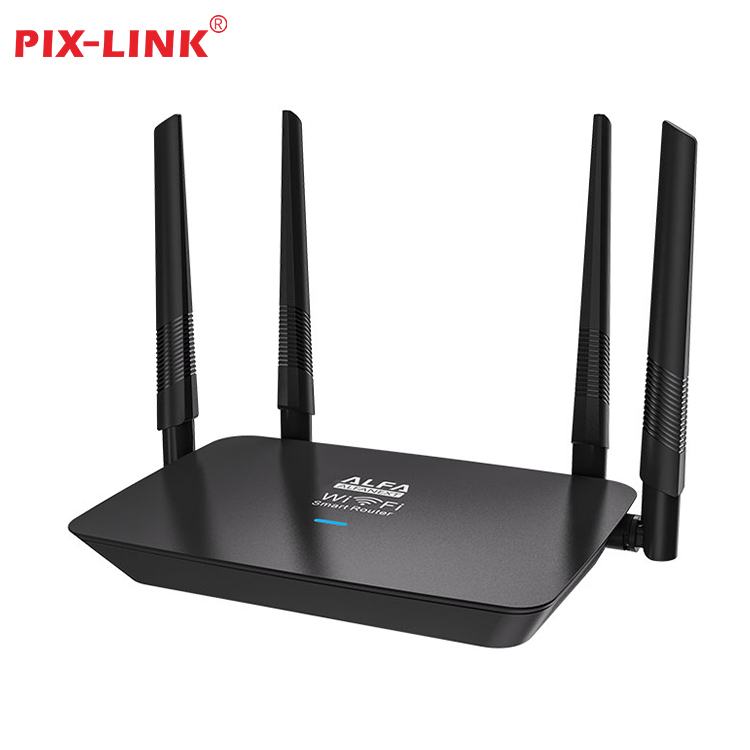

PIX-LINK 300Mbps 2.4GHz Home Wireless Wifi Router Long Range Coverage

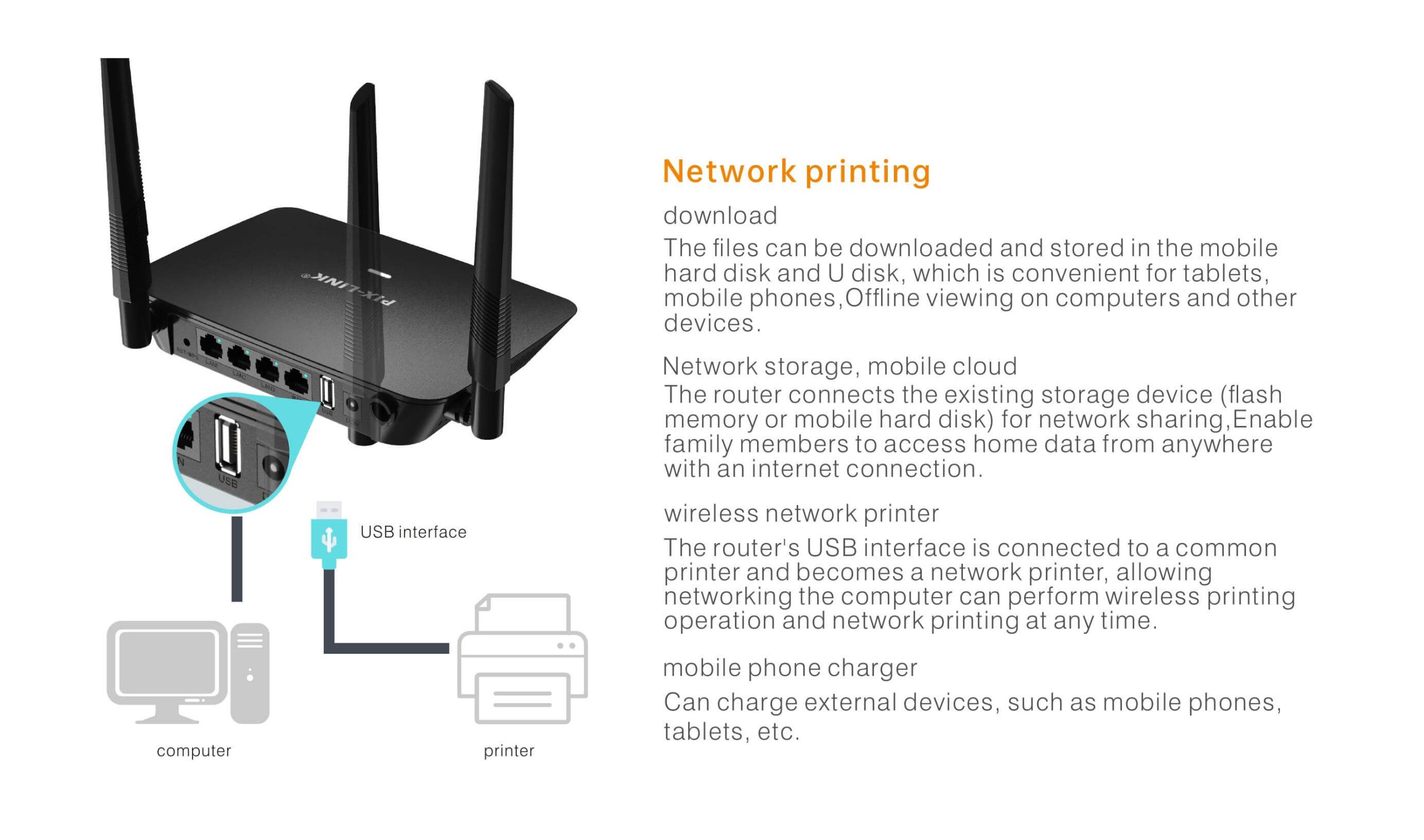

- The USB interface of the router can be connected with a mobile storage device, such as a large-capacity mobile hard disk or a USB flash drive.
- WR37 By connecting storage devices (such as flash memory or mobile hard disk) to the USB interface of the router, users can easily set up a home network center and realize file cloud sharing.
- When the charging interface at home is insufficient or needs to be charged nearby, you can use the USB interface of the router to charge devices such as mobile phones.
- It can provide users with the functions of easily storing, sharing and printing data, and improve the utilization rate and convenience of equipment.
Overview

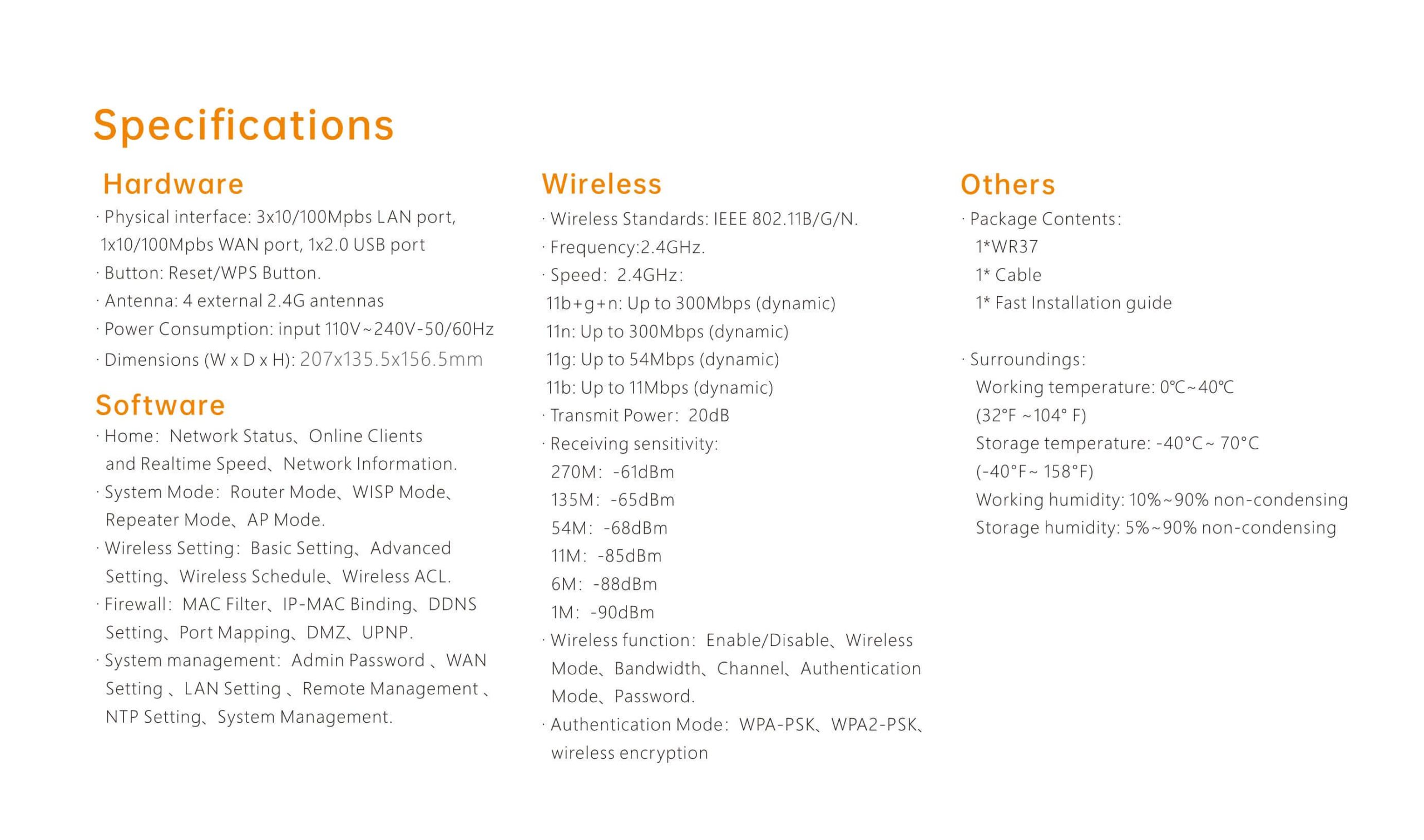

Specifications
| HARDWARE | |
| Processor | MTK CPU |
| DDR | · 64MByte |
| Flash | · 8MByte |

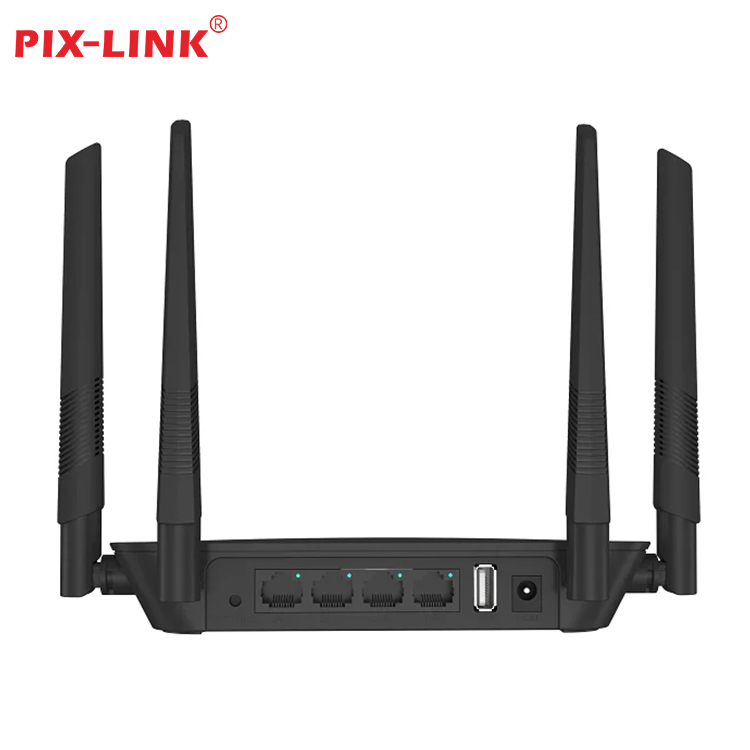

| Ethernet Ports | 1×100M WAN Ports |
| 3×100M LAN Ports | |
| 1×2.0 USB Ports | |
| LED | · System LED (RED),WPS LED (BULE) |
| Buttons | · Reset/WPS Button |
| Power | · Input:AC 110V~240V-50/60Hz |
| · Output：DC 12V/1A | |
| Antennas | · 4×2.4G Antennas |
| Dimensions | · 207×135.5×156.5mm |
| (W×D×H) | |
| WIRELESS | |
| Standards | · IEEE 802.11A/B/G/N |
| frequency | · 2.412~2.462GHz |
| WiFi Speeds | · 300Mbbps |
| WiFi Encryption | · WPA-PSK/WPA2-PSK/WPA3-PSK |
| WiFi Transmission Power | · <20 dBm |
| SOFTWARE | |
| Working Modes | · Router、Repeater、AP、WISP |
| Protocols | · IPv4 |
| WAN Types | · Dynamic IP |
| · Static IP | |
| · PPPoE | |
| Package | |
| Package Contents | · 1xWR37 |
| · 1xRJ45 Ethernet Cable | |
| · 1xPower Adapter | |
| · 1xQuick Installation Guide | |
| OTHERS | |
| Environment | · Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| · Storage Temperature: -40℃~70℃ (-40℉ ~158℉) | |
| · Operating Humidity: 10%~90% non-condensing | |
| · Storage Humidity: 5%~90% non-condensing | |
