PIX-LINK Wholesale Wifi Router WR08 Wireless Internet Router 4 Antennas

  • Complies with IEEE 802.11n to provide a wireless data rate of up to 300Mbps.
  • One 10/100M Auto-Negotiation RJ45 WAN port, four 10/100M Auto-Negotiation RJ45 LAN ports, supporting Auto MDI/MDIX.
  • Provides WPA/WPA2, WPA-PSK/WPA2-PSK encryption security.
  • Shares data and Internet access for users, supporting Dynamic IP/Static IP/PPPoE/PPTP/L2TP Internet access.
  • Supports DMZ host, Dynamic DNS, Static Routing.
  • Provides Automatic-connection and Scheduled Connection on certain time to the Internet.
  • Built-in DHCP server supporting static IP address distributing.
  • Built-in firewall supporting IP address filtering, Domain Name filtering, and MAC address filtering.

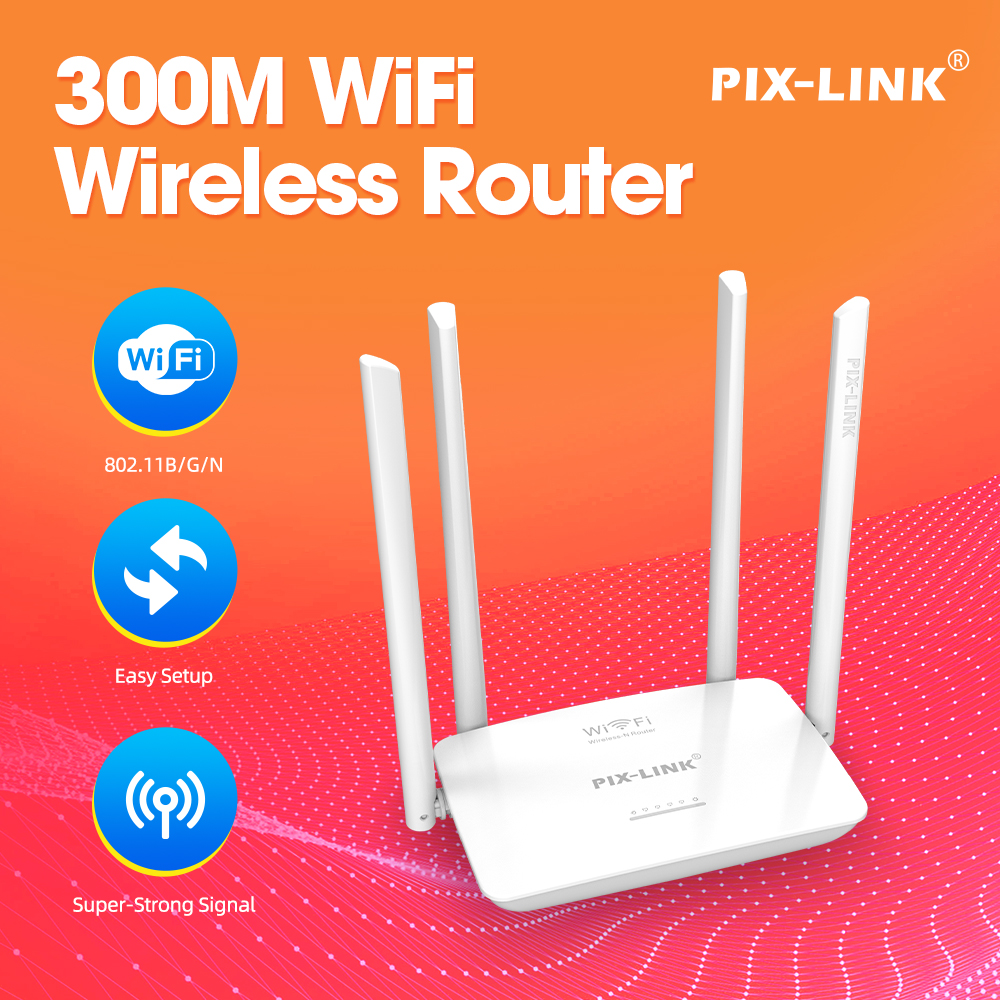

300Mbps Wireless Router WR08

Overview Specifications

Overview

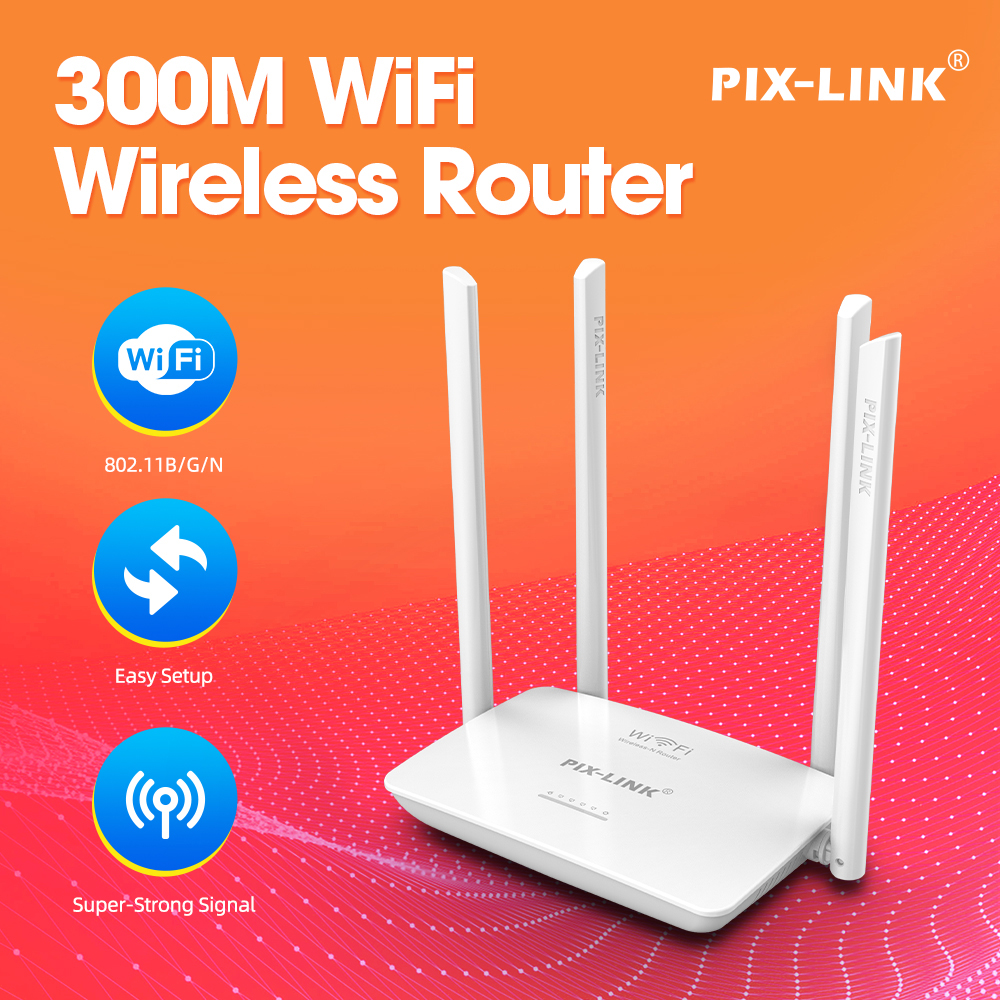

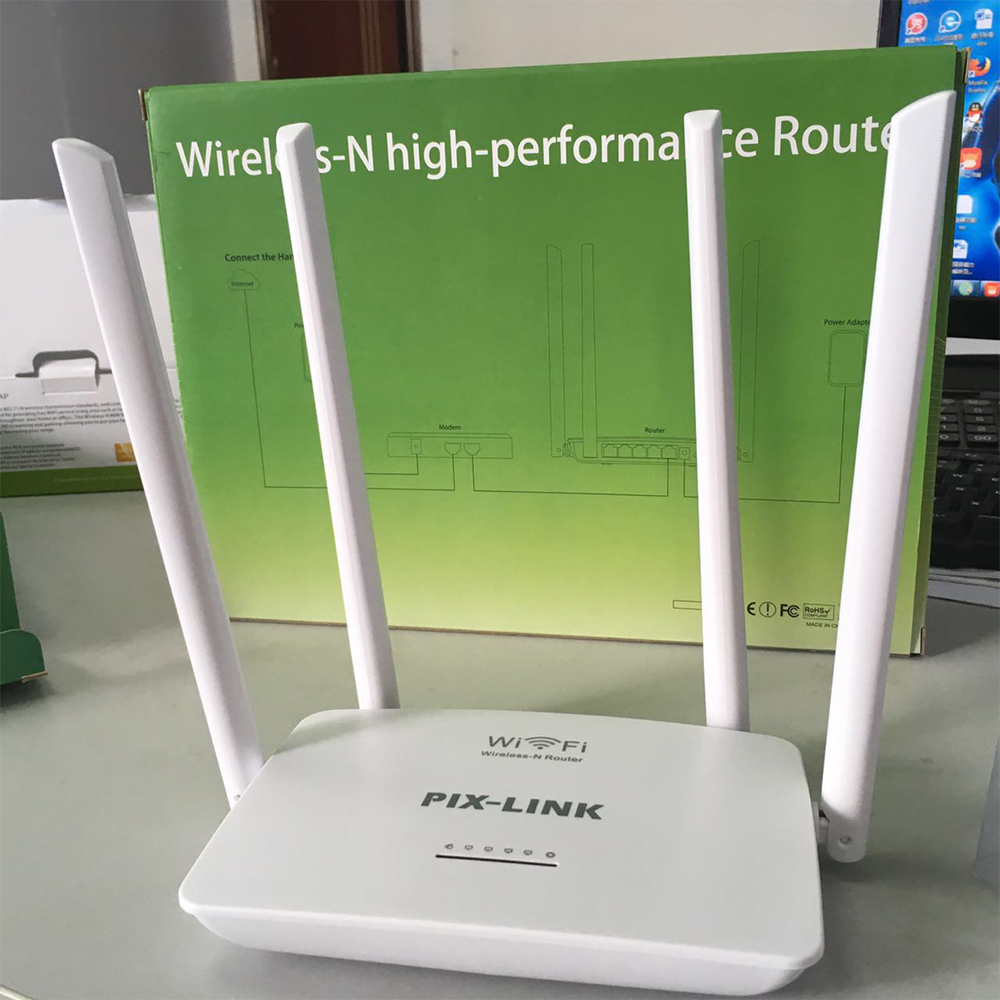

PIX-LINK 300M WiFi Router WR08

Factory Directly Sales

The Wireless-N Router is a combined wired and wireless network connection device designed specifically for small business and home office networking requirements. The Wireless-N Router is a high speed solution that is compatible with IEEE 802.11b/g/n. Based on 802.11n technology, It gives users wireless performance at up to 300Mbps, which can meet your most demanding home networking needs, such as HD streaming, online gaming and large files downloading.

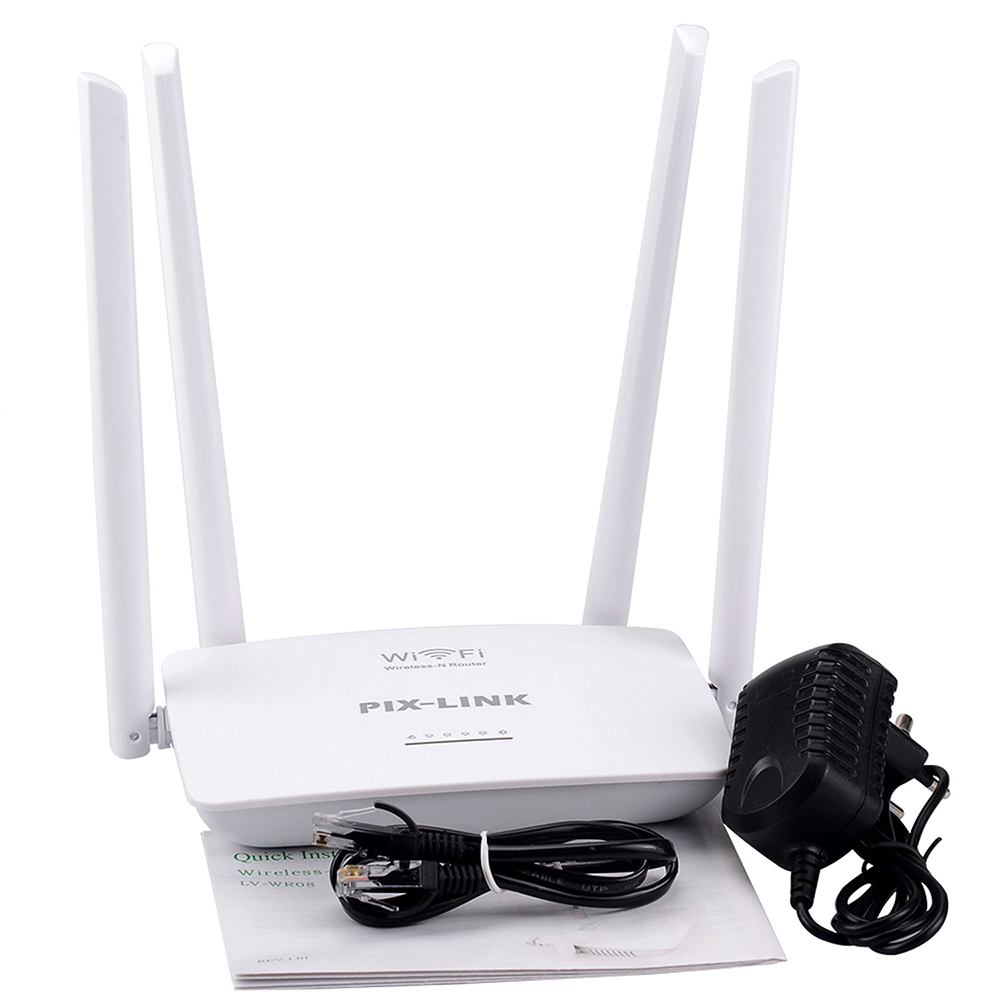

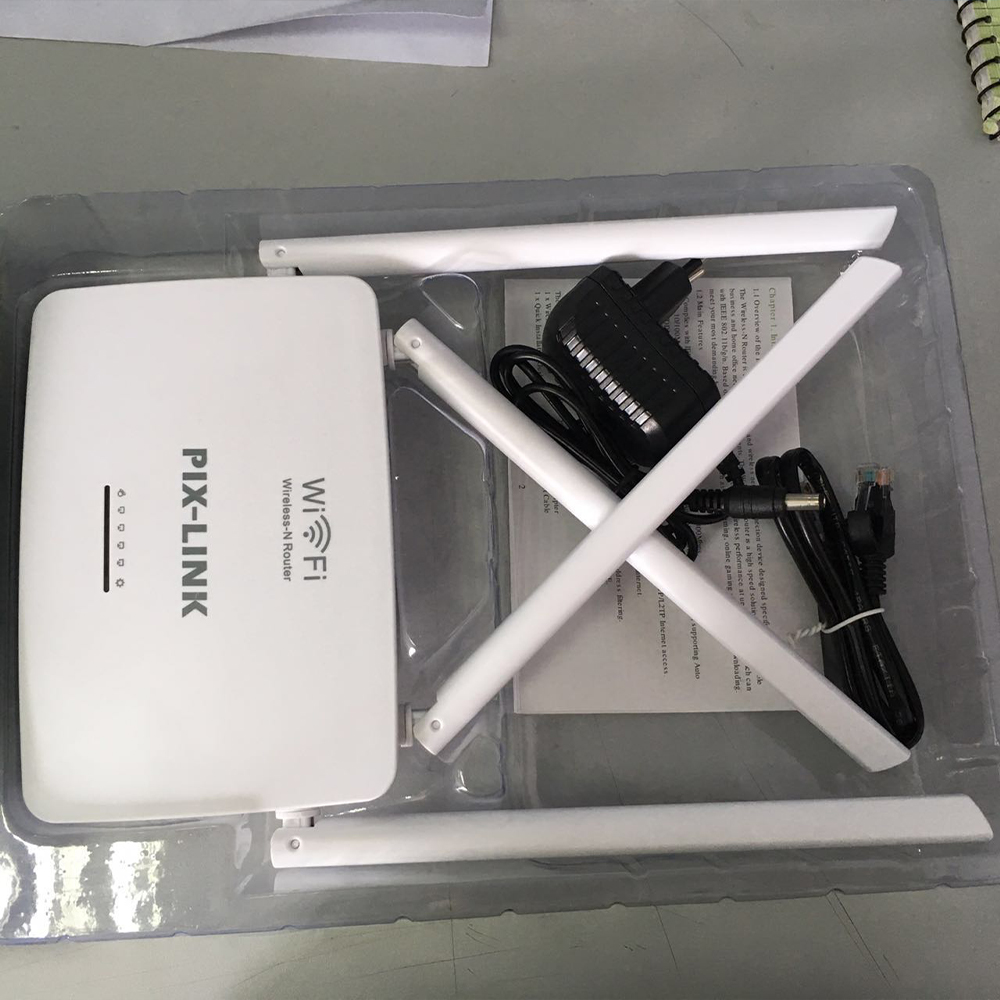

​Package Contents

1 x Wireless-N Router
1 x Power Adapter (EU or US Plug)
1 x Quick Installation Guide
1 x Ethernet Cable

Specifications

HARDWARE FEATURES

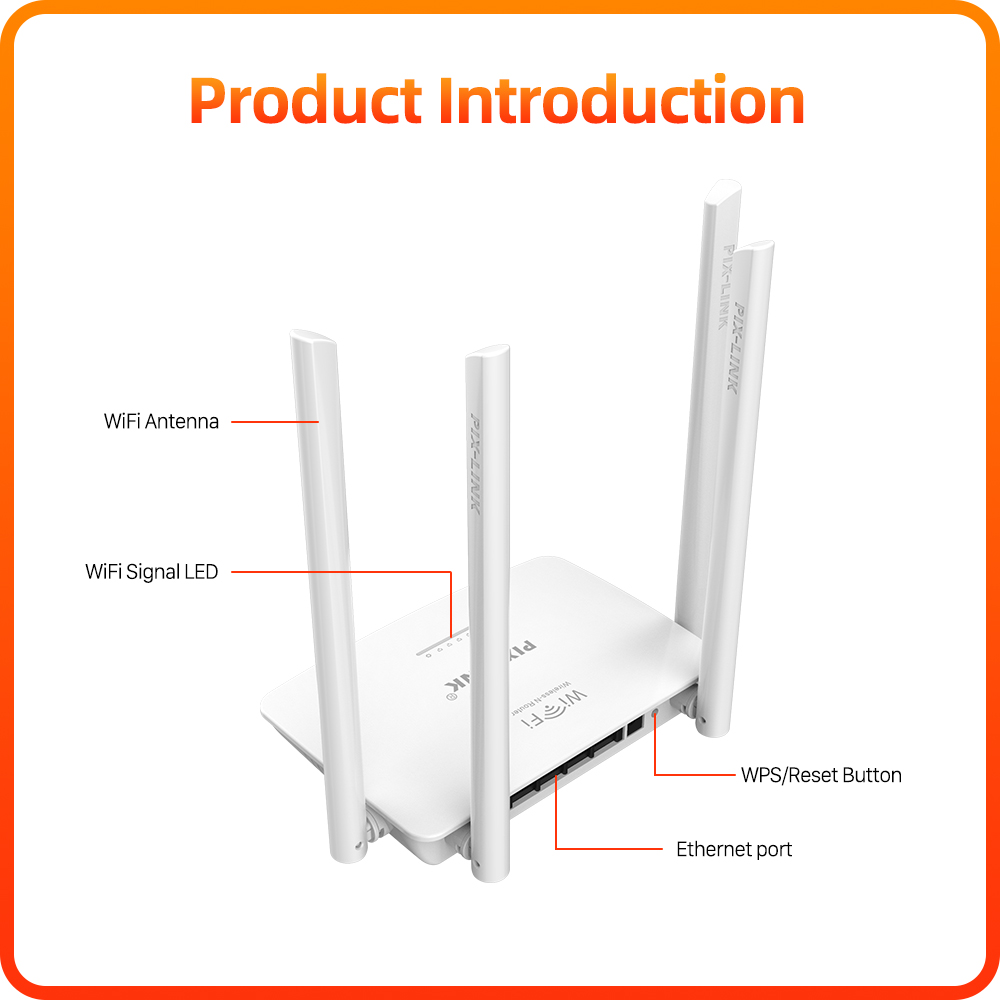

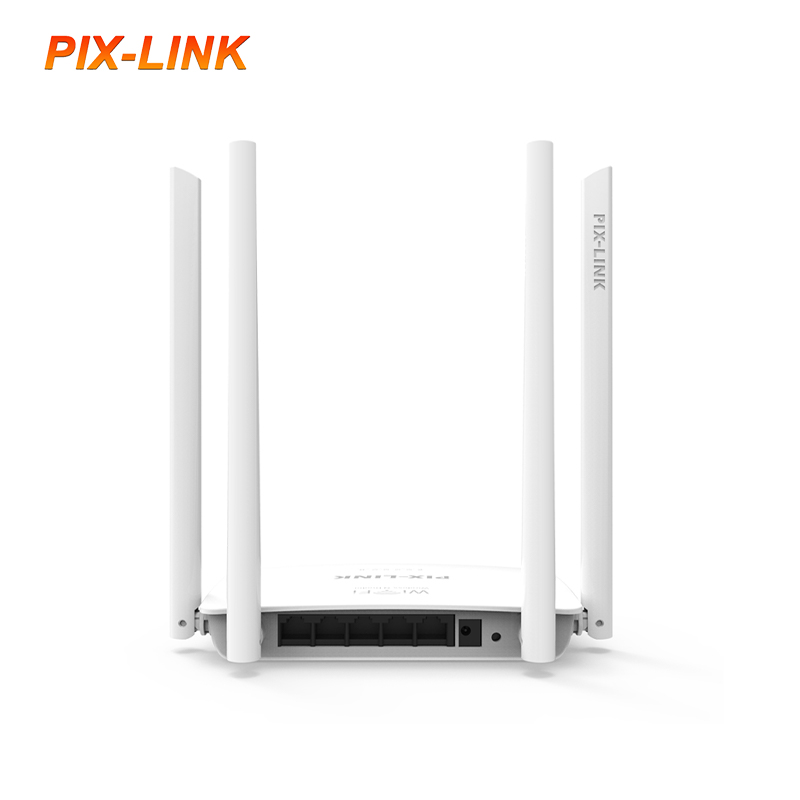

Interface 4×10/100Mbps LAN PORTS
1×10/100Mbps WAN PORT

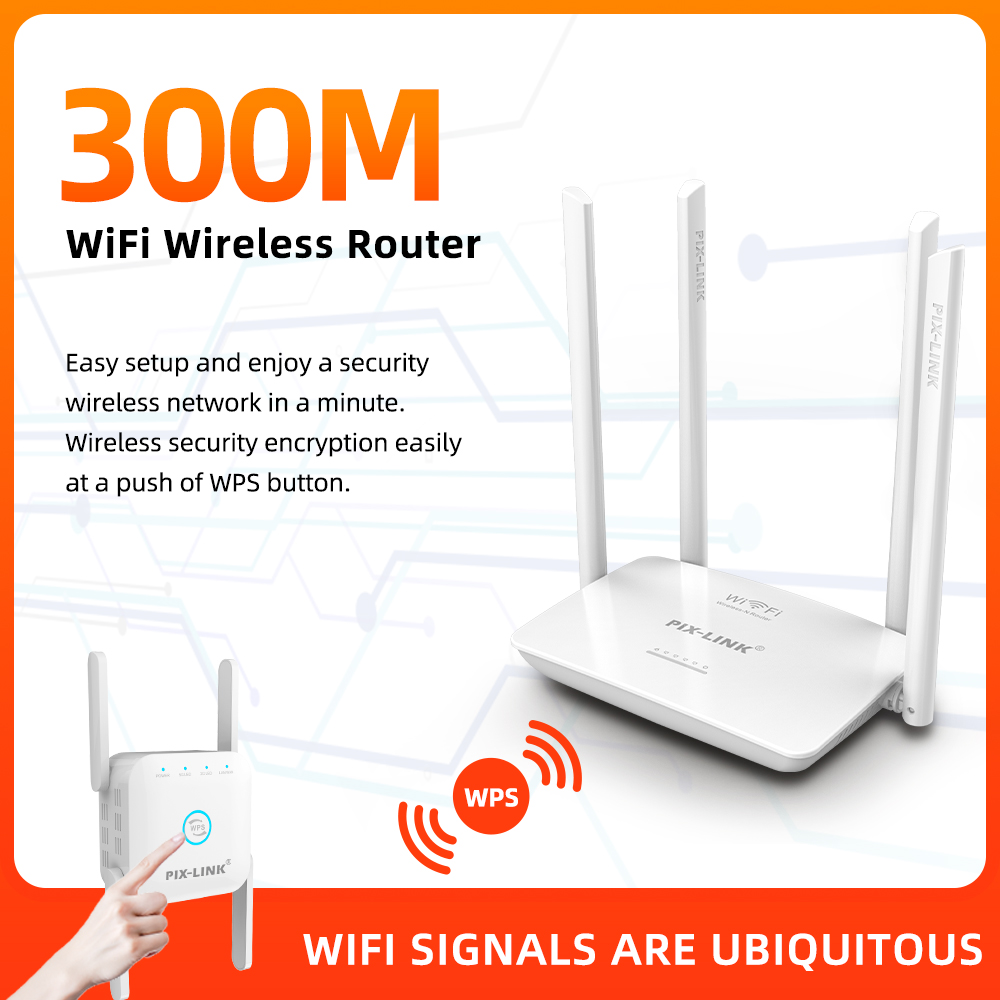

Button WPS/Reset Button
Antenna 4*5dBi Fixed Omni Directional Antenna
External Power Supply 5VDC / 1A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 160.5 x 108.5 x 30.5 mm

WIRELESS FEATURES

Frequency 2.4-2.4835GHz
Signal Rate Up to 300Mbps(dynamic)
Reception Sensitivity 270M: -70dBm@10% PER
Transmit Power <20dBm
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

SOFTWARE FEATURES

Quality of Service WMM, Bandwidth Control
WAN Type Dynamic IP/Static IP/PPPoE/PPTP/L2TP/BigPond
DHCP Server, Client, DHCP Client List
Port Forwarding Virtual Server,Port Triggering, UPnP, DMZ
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Firewall Security DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding

OTHERS

Package Contents 1xWireless-N Rotuer 1xPower Adapter 1xEthernet Cable
1xQuick Installation Guide
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
