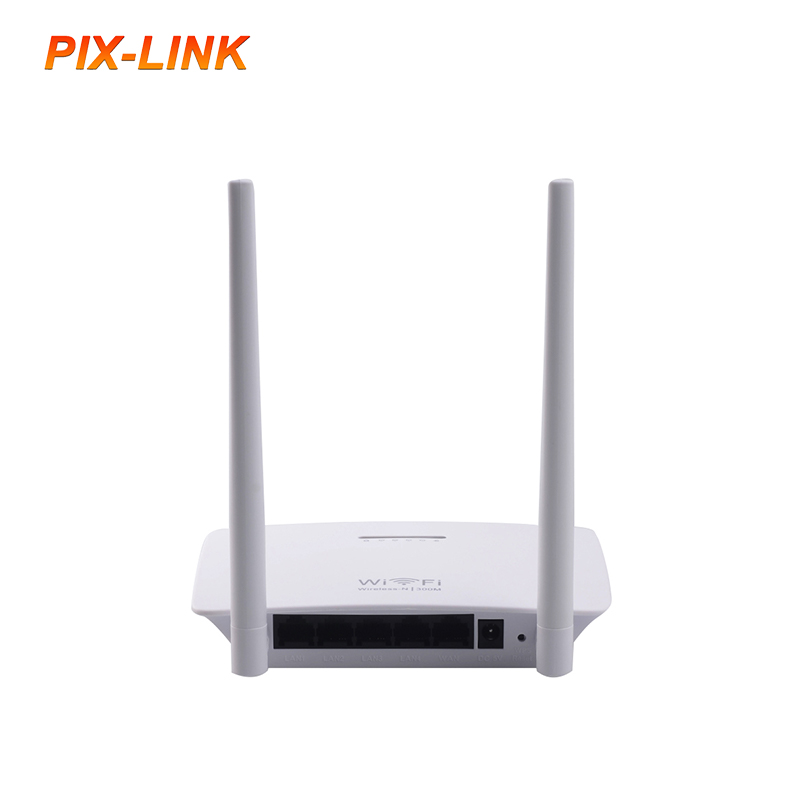

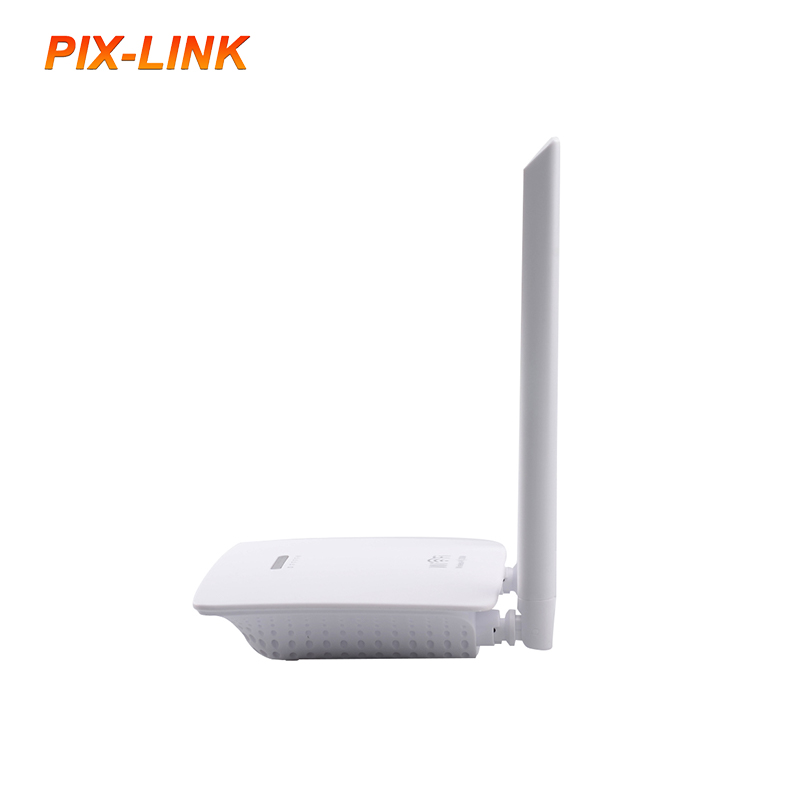

PIX-LINK 2024 Hot Selling WR07 Wireless Router 300mbps 2 Antena Wifi
- WIFI4 routers are compatible with a wide range of devices, including smartphones, tablets, laptops, etc., so you can seamlessly connect to the WIFI4 router and enjoy the convenience of wireless networks.
- The setup and management of the WR07 is usually relatively simple, and users can access the router’s management interface through a browser, and easily perform network Settings, password changes, and device connections.
- The WR07 has good coverage and users can easily connect to the network from all corners of the home and enjoy a seamless network experience.
300Mbps Wireless Router WR07
Overview
Overview of the Router
The Wireless-N Router is a combined wired and wireless network connection device designed specifically for small business and home office networking requirements. The Wireless-N Router is a high speed solution that is compatible with IEEE 802.11bgn. Based on 802.11n technology, It gives users wireless performance at up to 300Mbps, which can meet your most demanding home networking needs, such as HD streaming, online gaming and large files downloading.

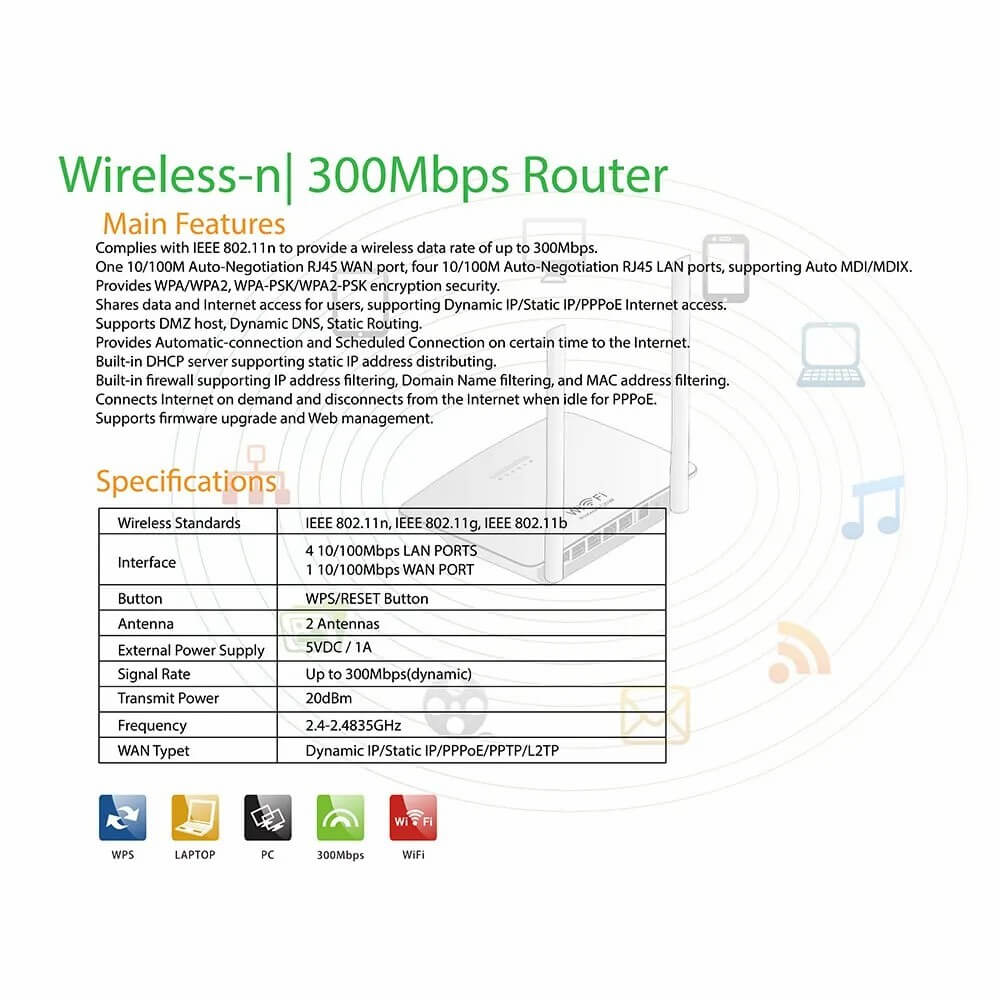

Main Features
- 300Mbps wireless speed ideal for interruption sensitive applications.
- Easy setup and enjoy a security wireless network in a minute.
- Wireless security encryption easily at a push of WPS button.
- Work as client to connect ISP network and share the Internet.
Complies with IEEE 802.11n to provide a wireless data rate of up to 300Mbps.
One 10100M Auto-Negotiation RJ45 WAN port, four 10100M Auto-Negotiation RJ45 LAN ports, supporting Auto MDIMDIX.
Provides WPAWPA2, WPA-PSKWPA2-PSK encryption security.
Shares data and Internet access for users, supporting Dynamic IPStatic IPPPPoEPPTPL2TP Internet access.
Supports DMZ host, Dynamic DNS, Static Routing.
Provides Automatic-connection and Scheduled Connection on certain time to the Internet.
Built-in DHCP server supporting static IP address distributing.
Built-in firewall supporting IP address filtering, Domain Name filtering, and MAC address filtering.
Connects Internet on demand and disconnects from the Internet when idle for PPPoE.

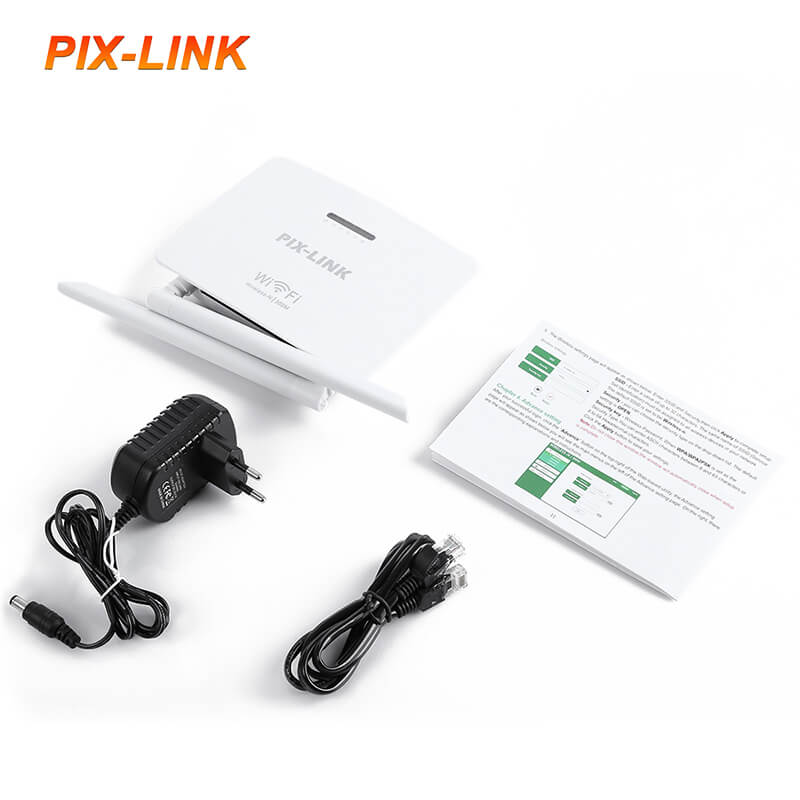

Package Contents
1 x Wireless-N Router
1 x Power Adapter (EU or US Plug)
1 x Quick Installation Guide
1 x Ethernet Cable
Specifications
HARDWARE FEATURES
| Interface | 4×10/100Mbps LAN PORTS 1×10/100Mbps WAN PORT |

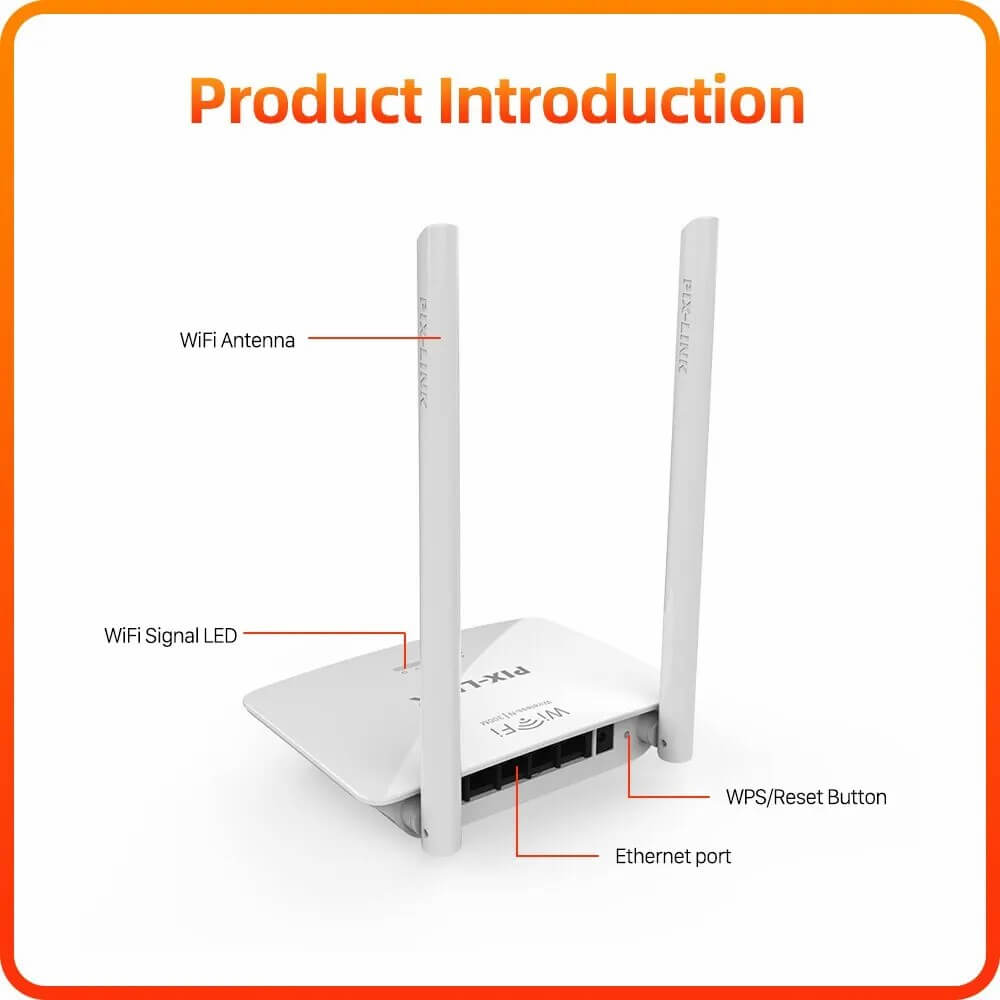

| Button | WPS/Reset Button |
| Antenna | 2*5dBi Fixed Omni Directional Antenna |
| External Power Supply | 5VDC / 1A |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 154.0 x 108.0 x 30.3 mm |
WIRELESS FEATURES
| Frequency | 2.4-2.4835GHz |
| Signal Rate | Up to 300Mbps(dynamic) |
| Reception Sensitivity | 270M: -70dBm@10% PER |
| Transmit Power | <20dBm |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
SOFTWARE FEATURES
| Quality of Service | WMM, Bandwidth Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP/BigPond |
| DHCP | Server, Client, DHCP Client List |
| Port Forwarding | Virtual Server,Port Triggering, UPnP, DMZ |
| VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) |
| Firewall Security | DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
OTHERS
| Package Contents | 1xWireless-N Rotuer 1xPower Adapter 1xEthernet Cable 1xQuick Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
