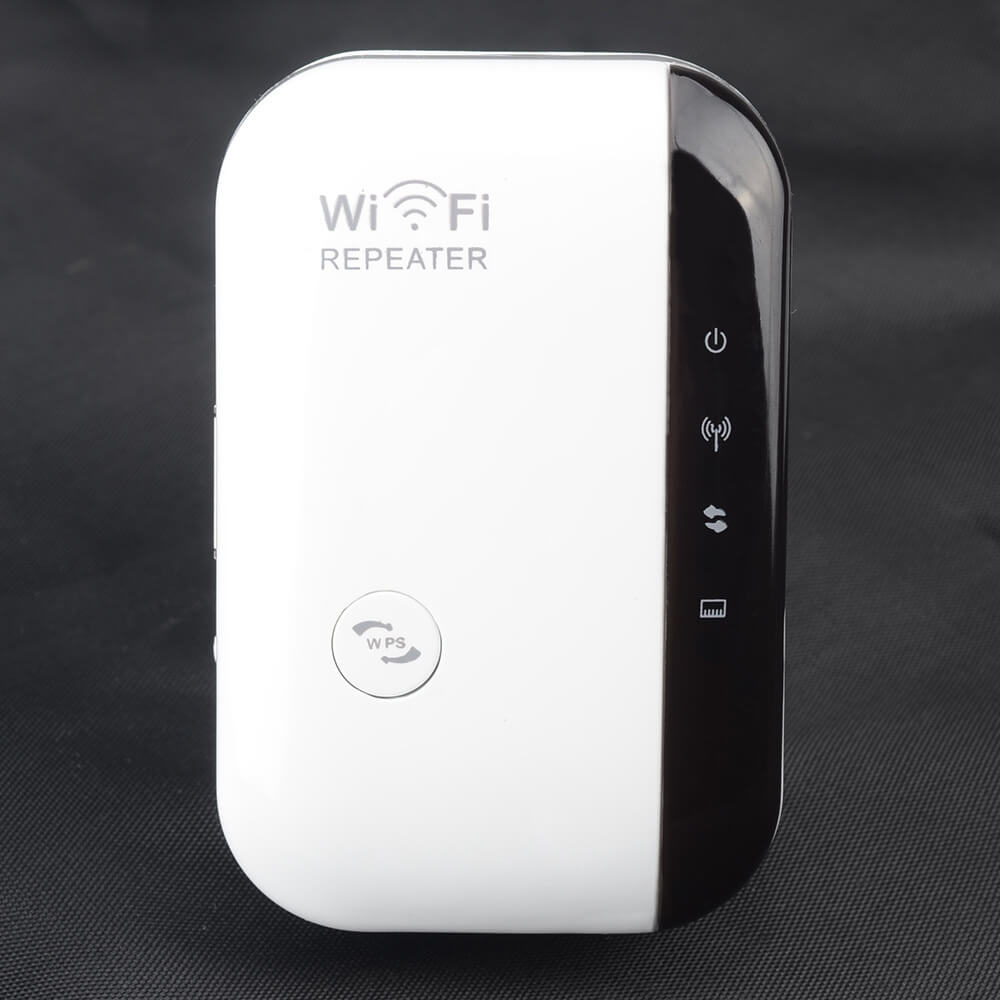

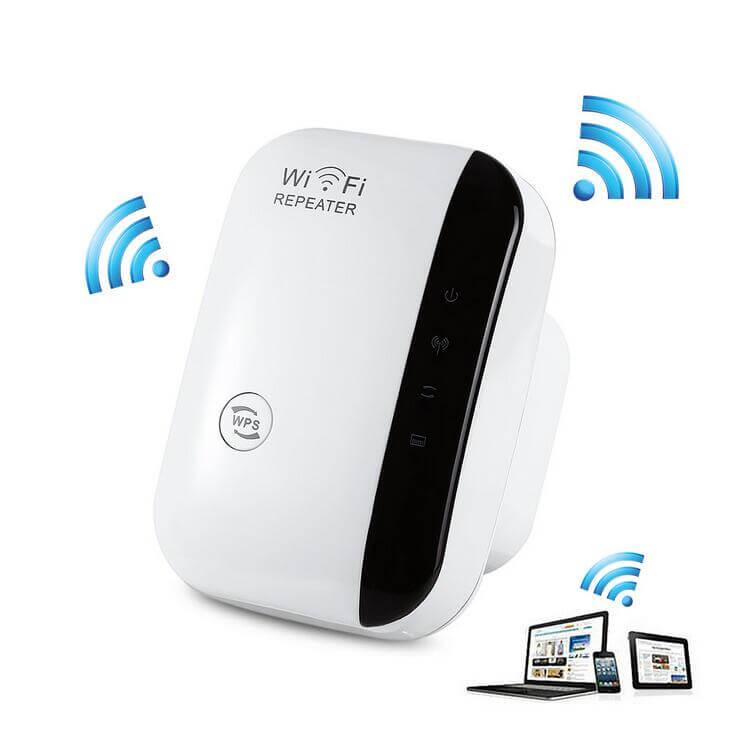

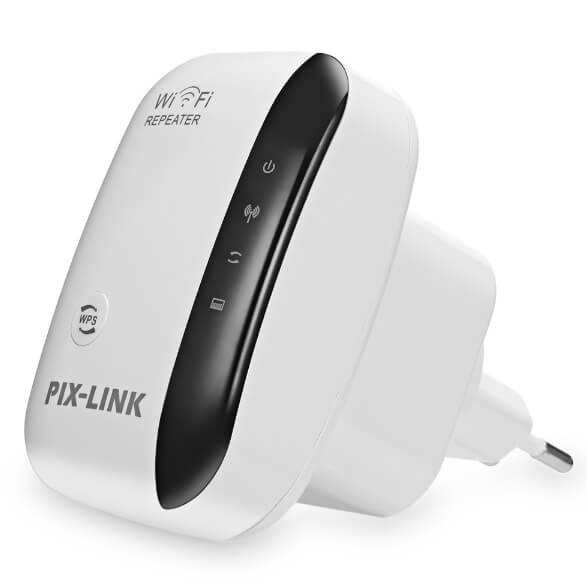

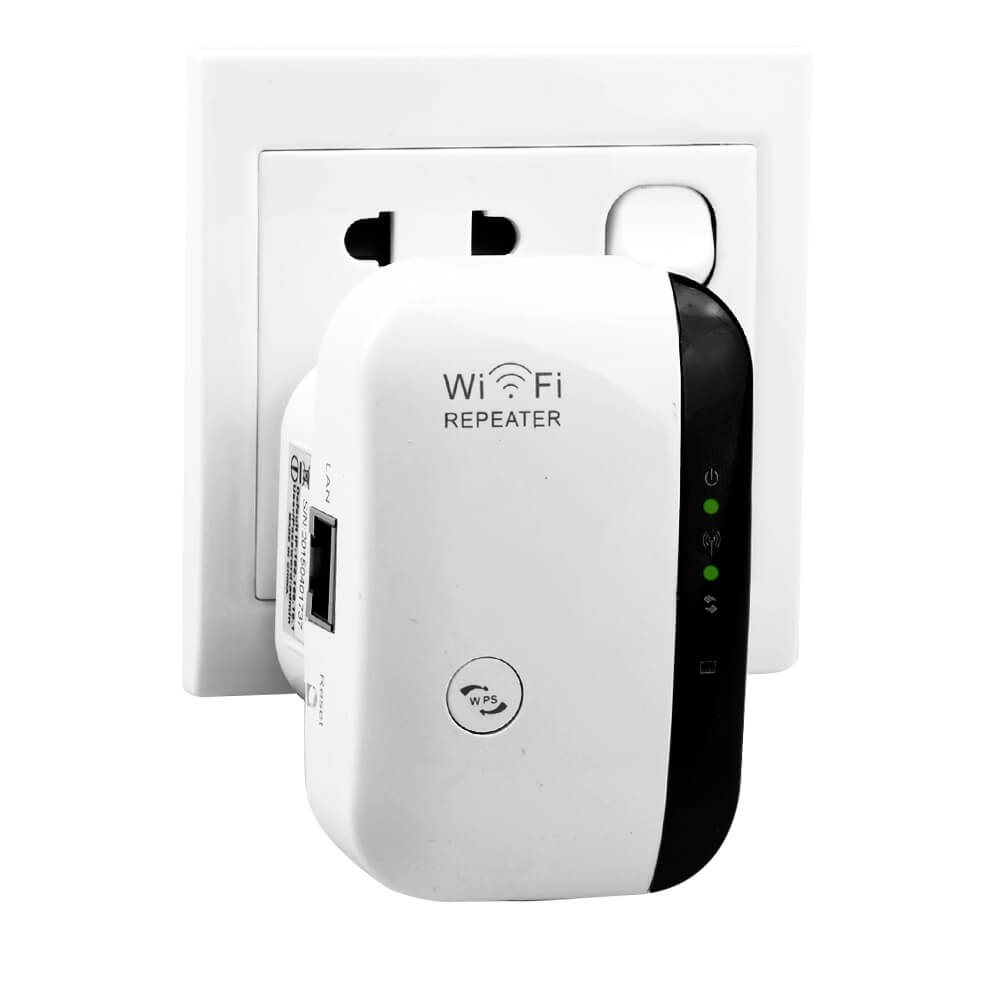

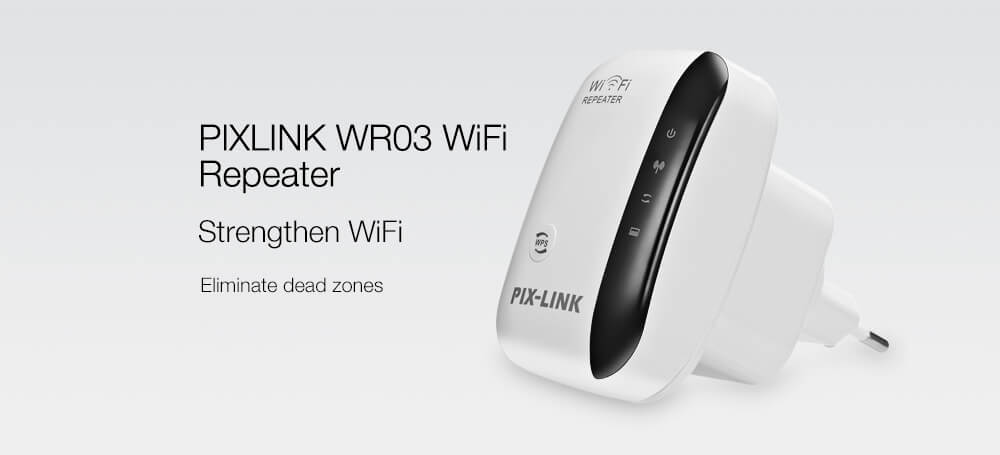

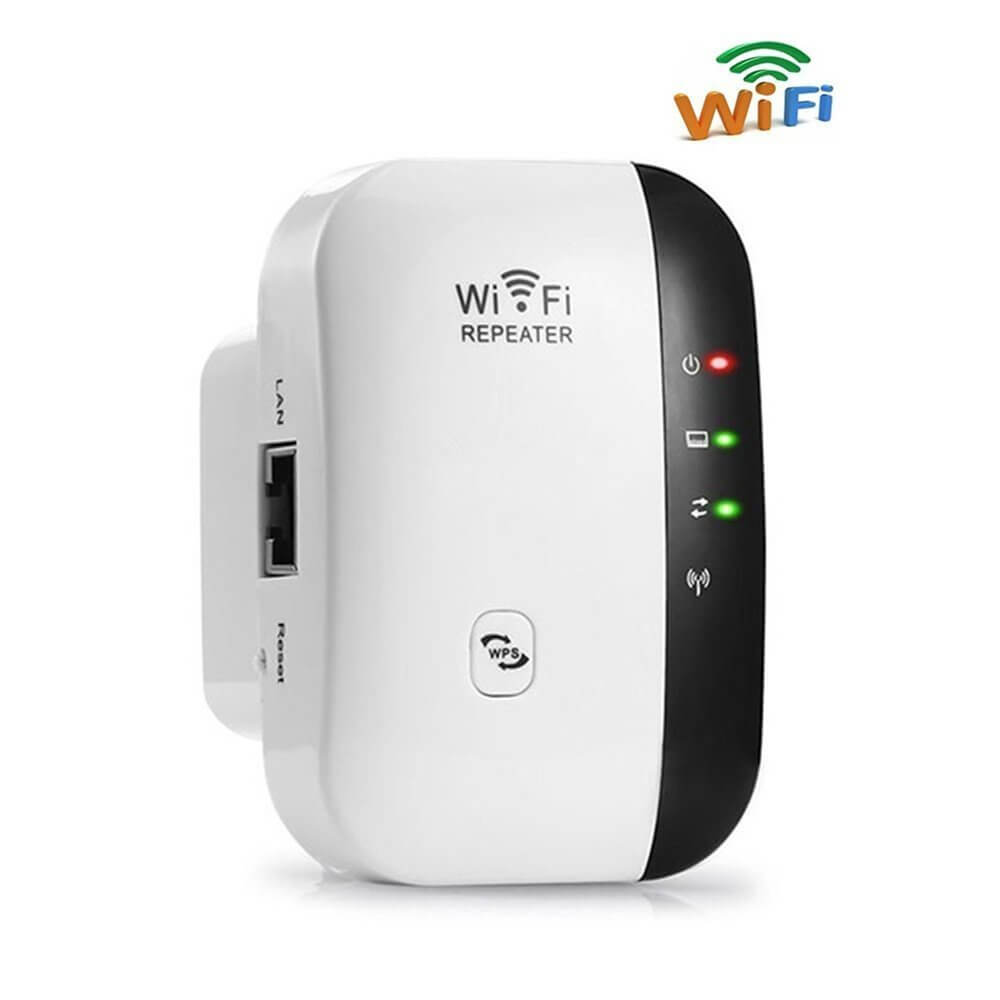

PIX-LINK 300M WiFi Extender Signal Booster for Home WiFi Repeater with Ethernet Port

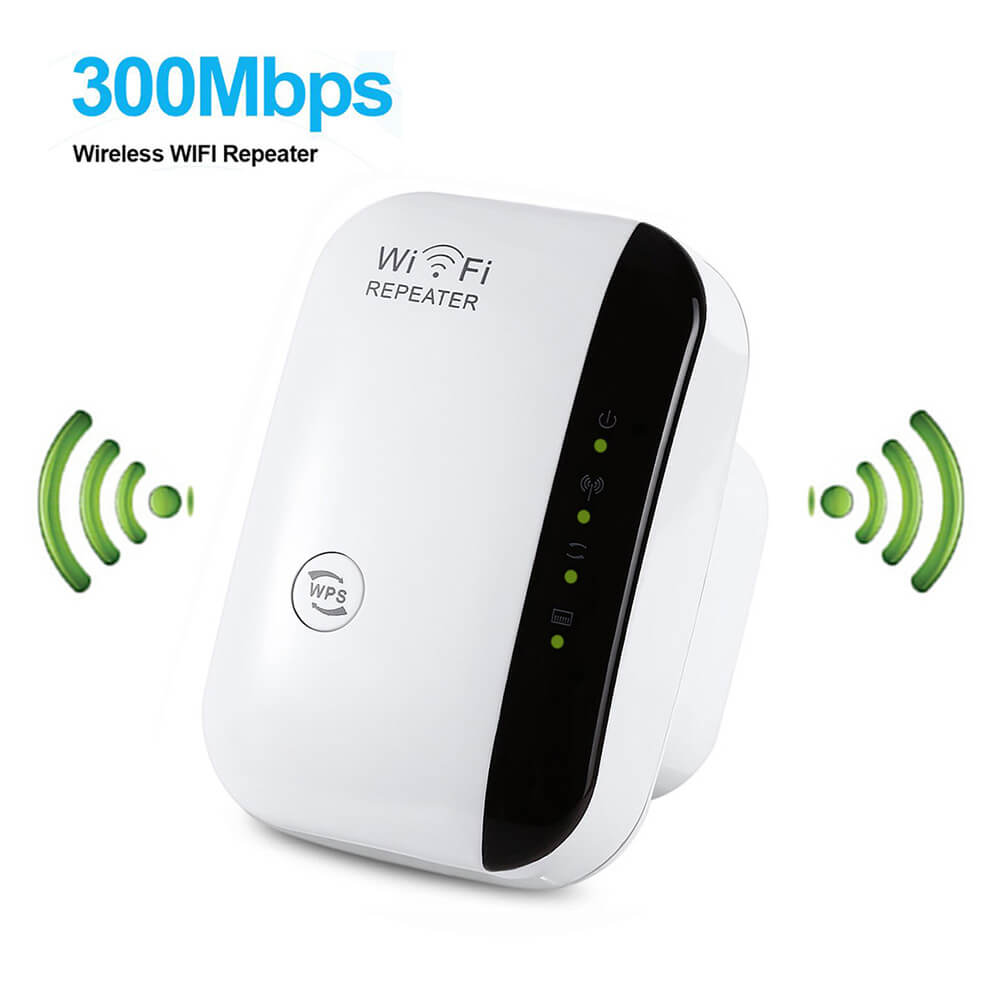

  • Wireless-N speed up to 300Mbps
  • Complies with IEEE 802.11B/G/N standards.

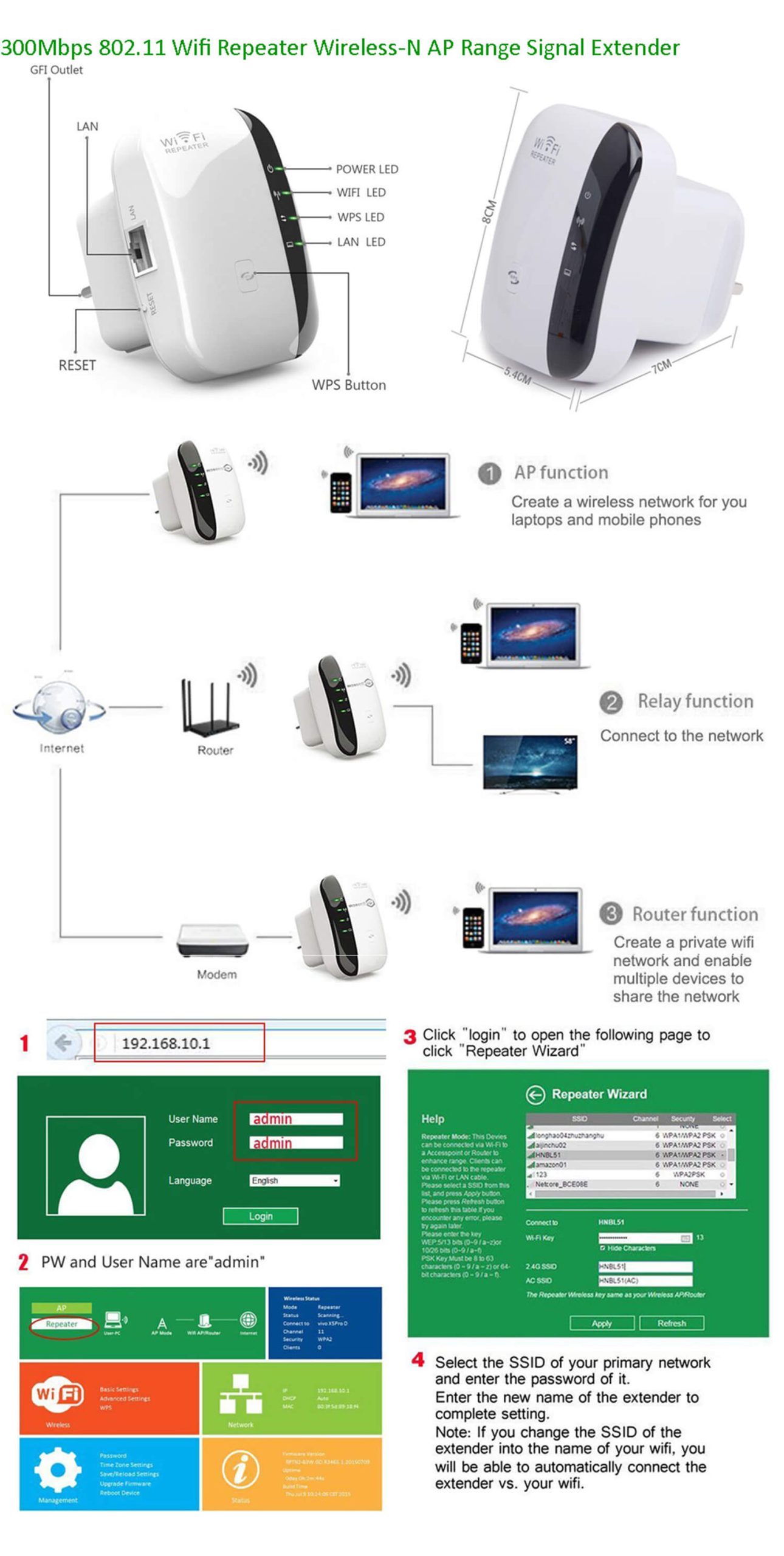

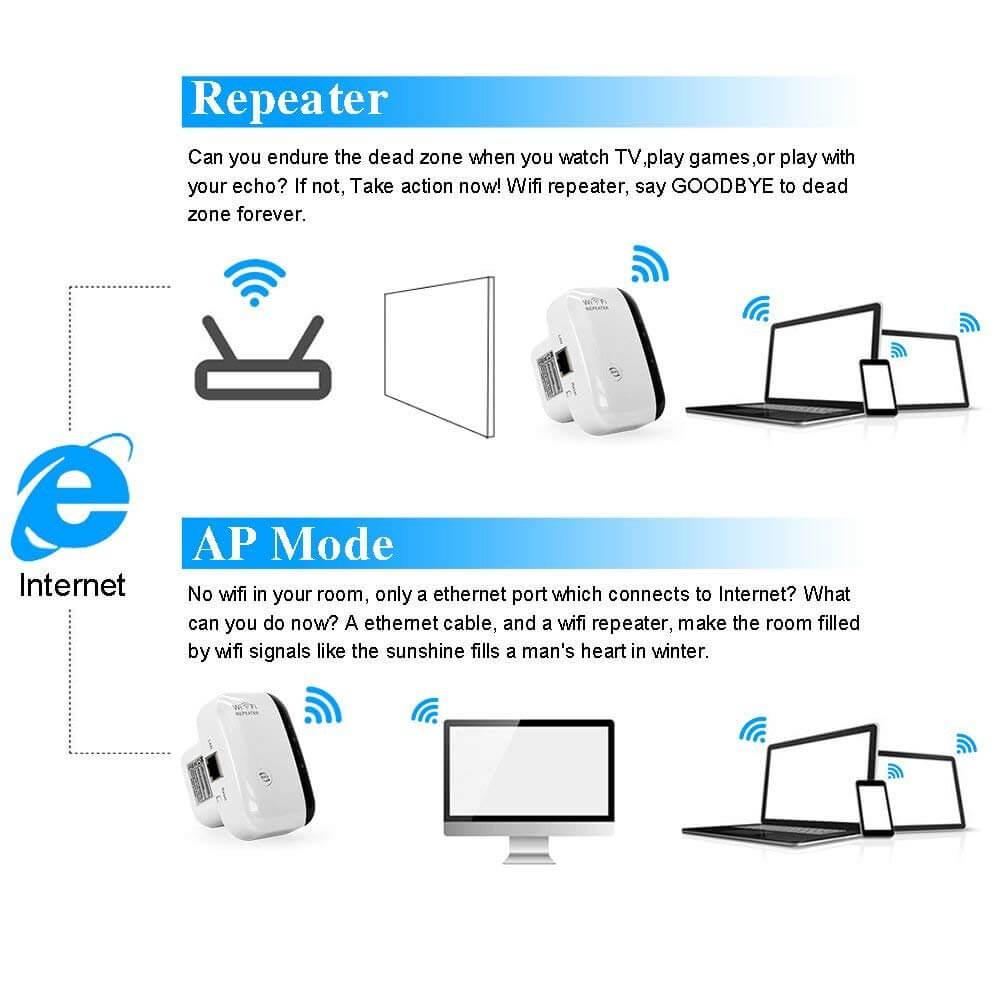

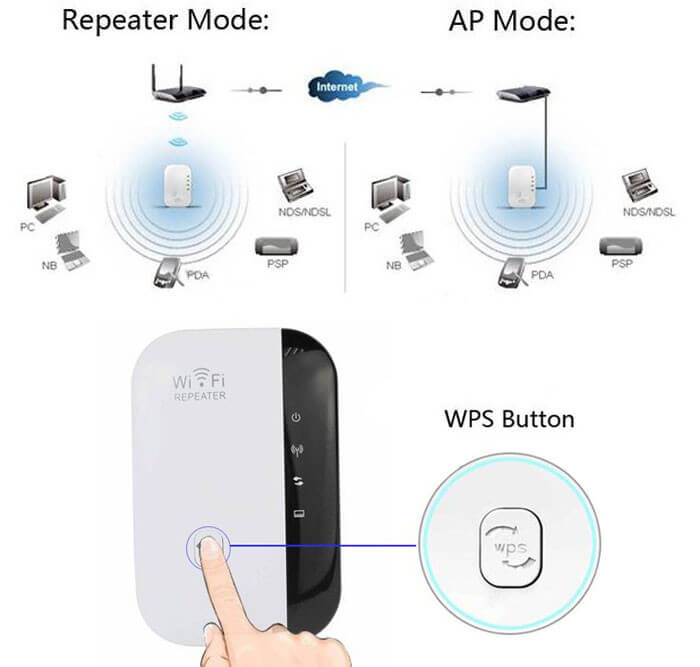

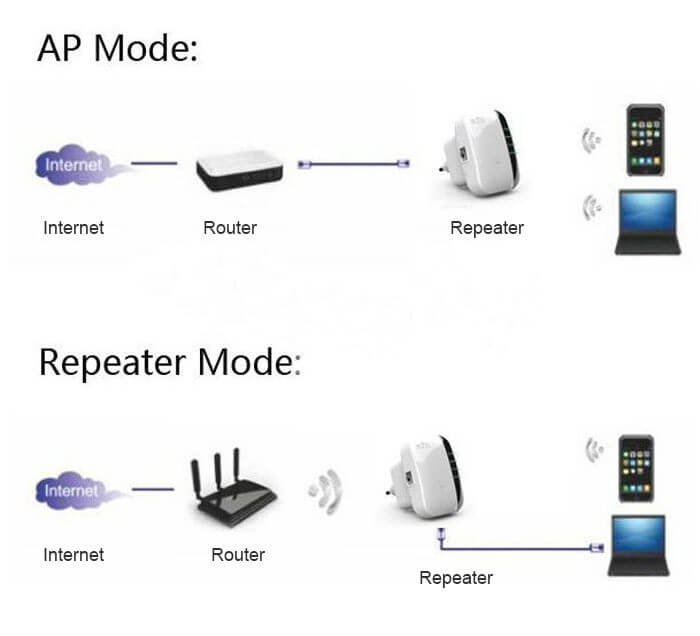

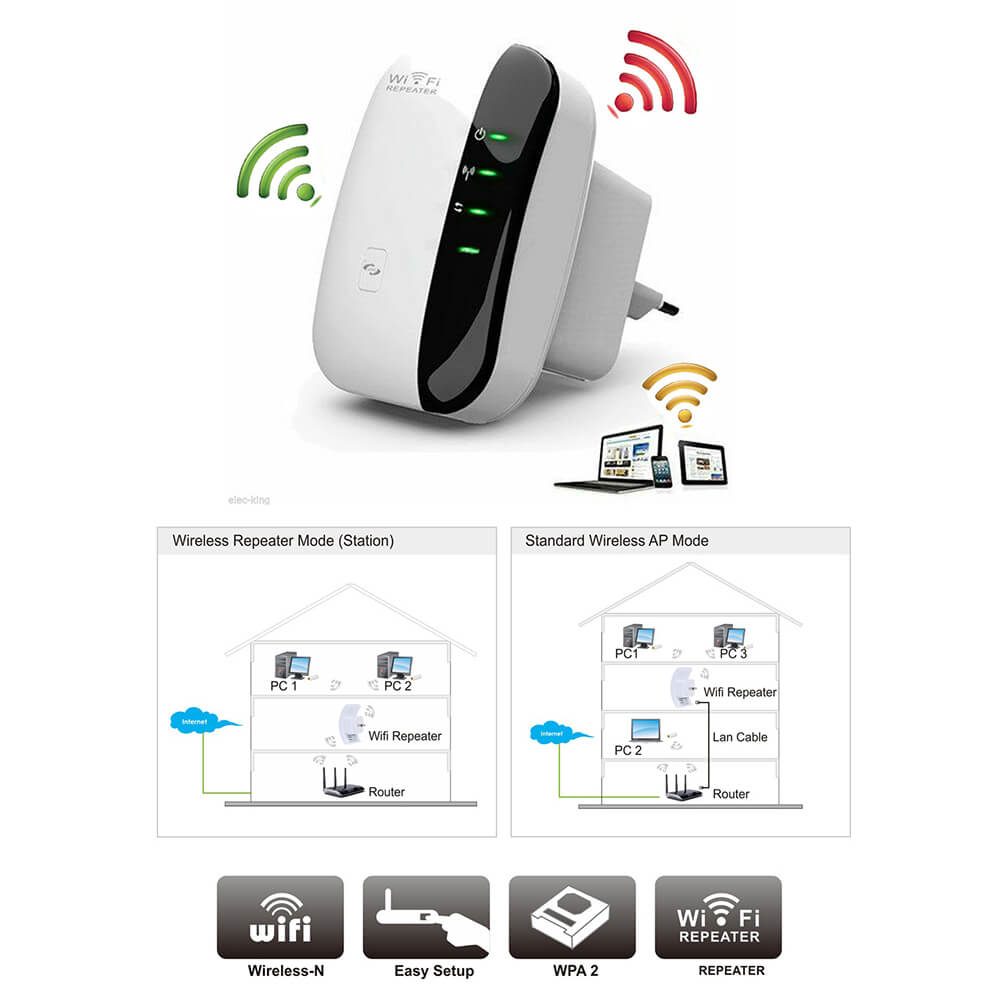

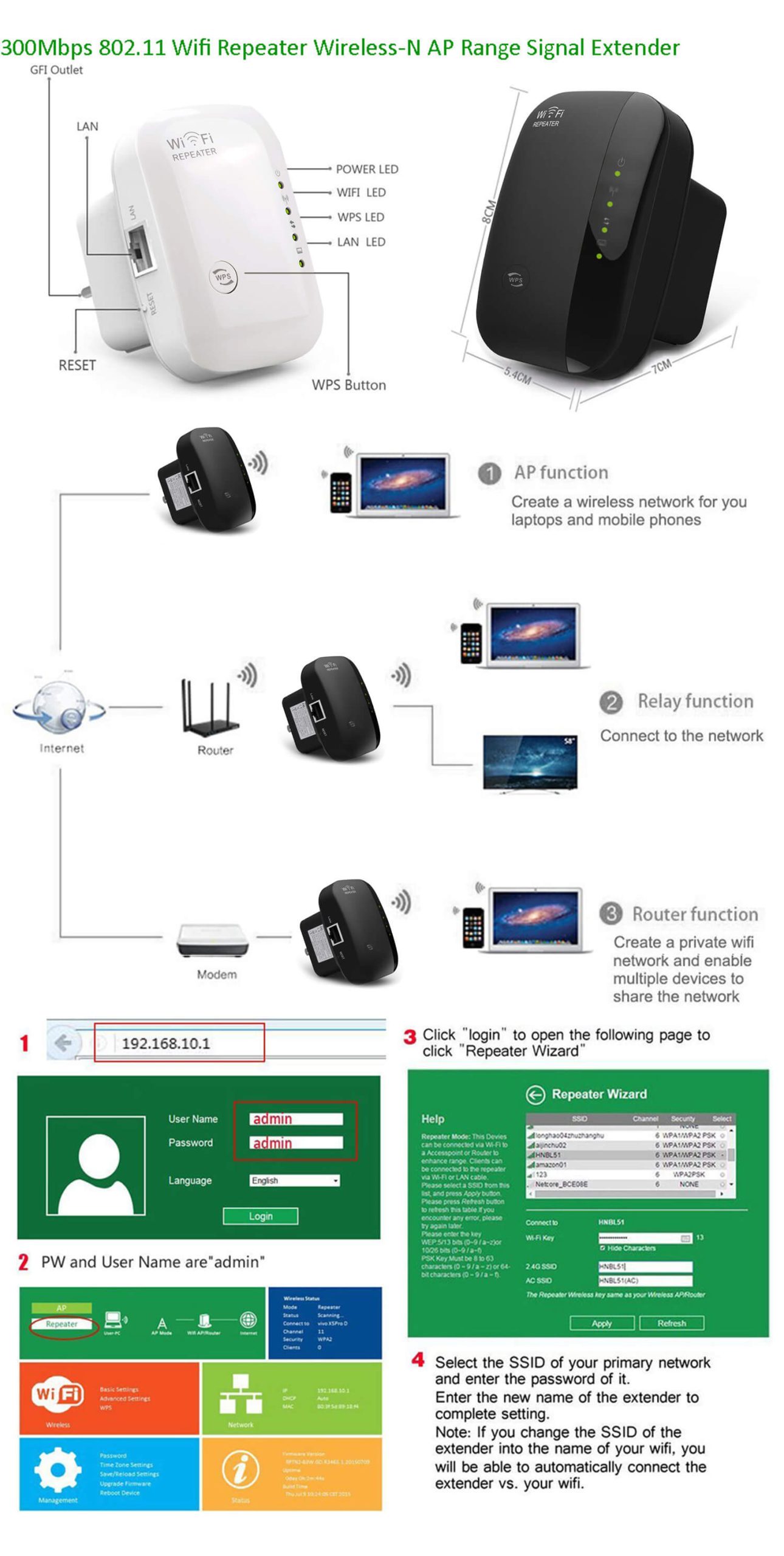

  • Supports Repeater, Client and AP mode.
  • Supports WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions.

Overview

Specifications

HARDWARE FEATURES

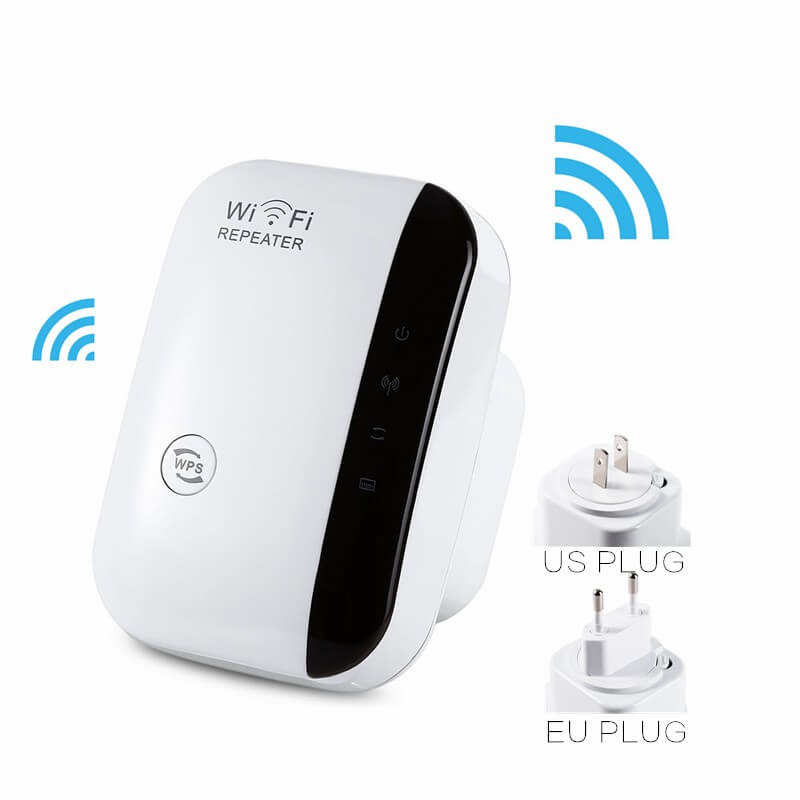

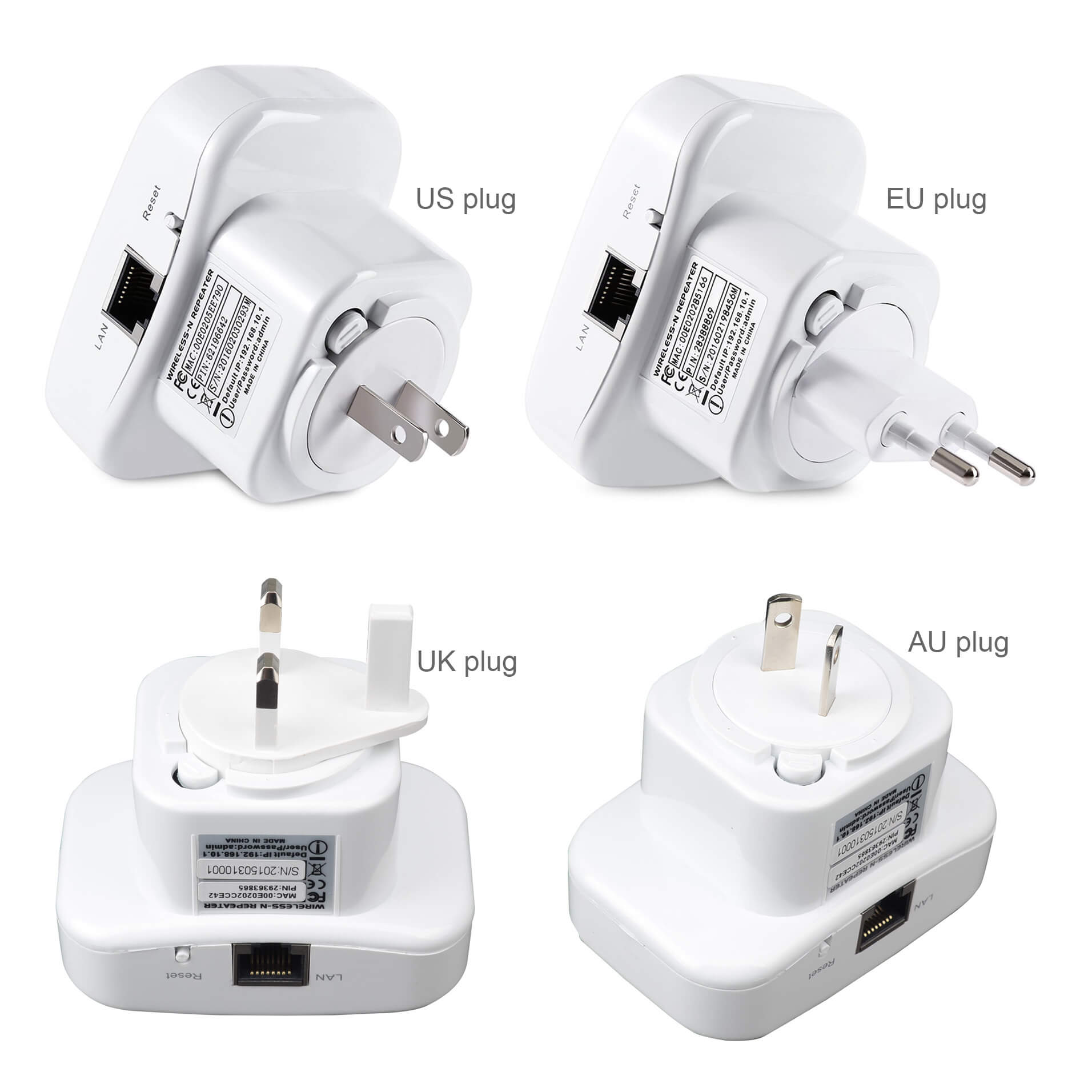

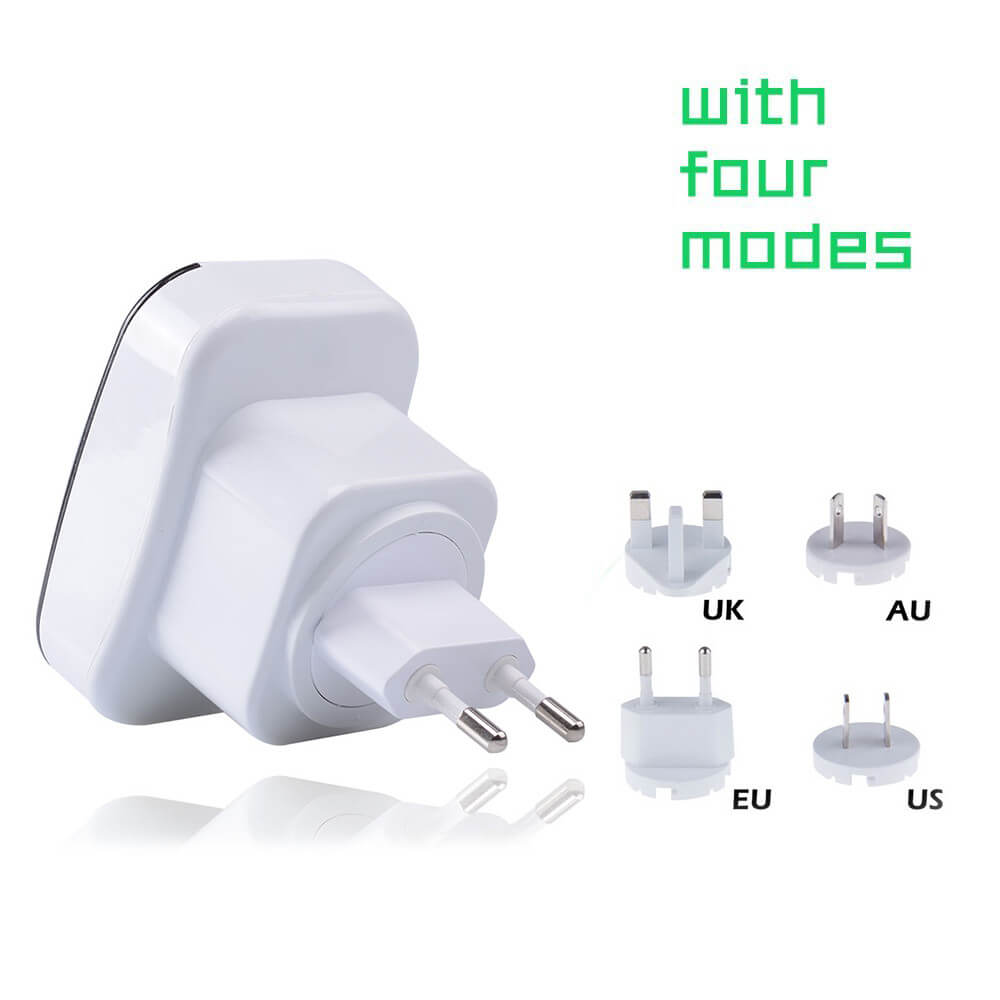

Plug Type EU, UK, US
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

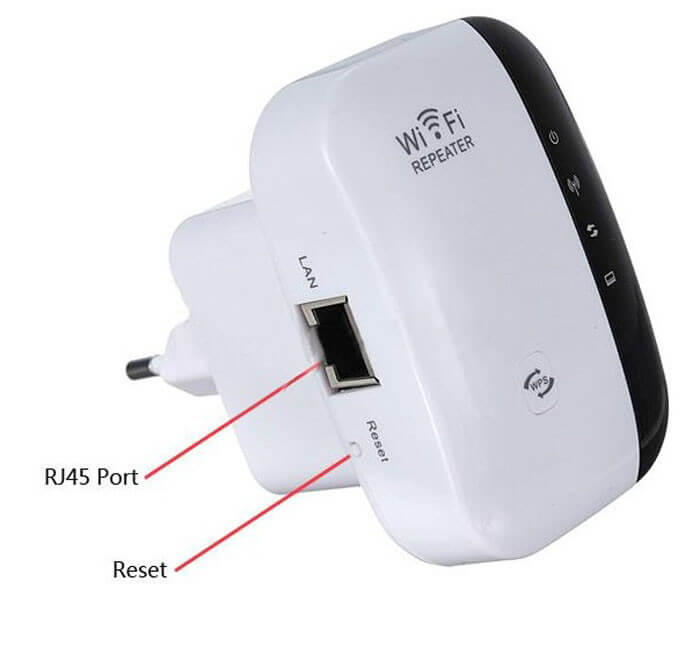

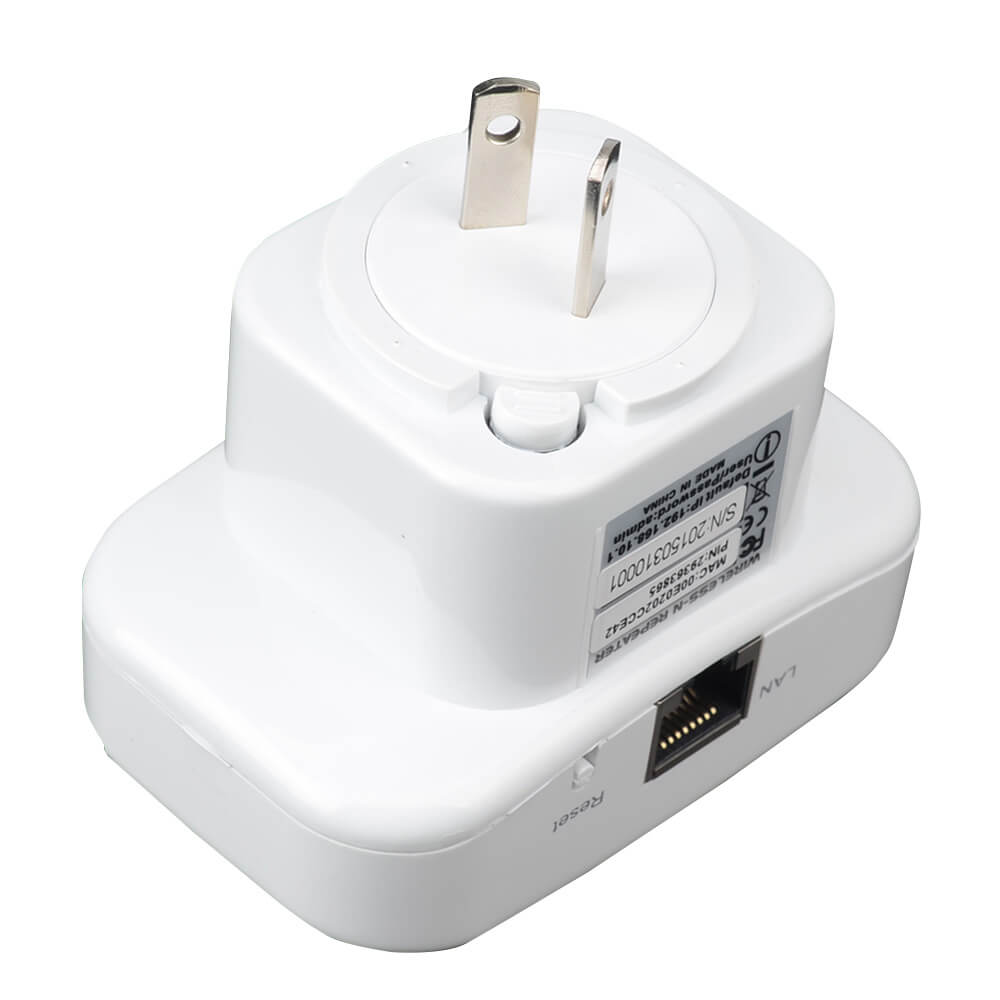

Interface 1 * 10/100Mbps LAN/WAN Port

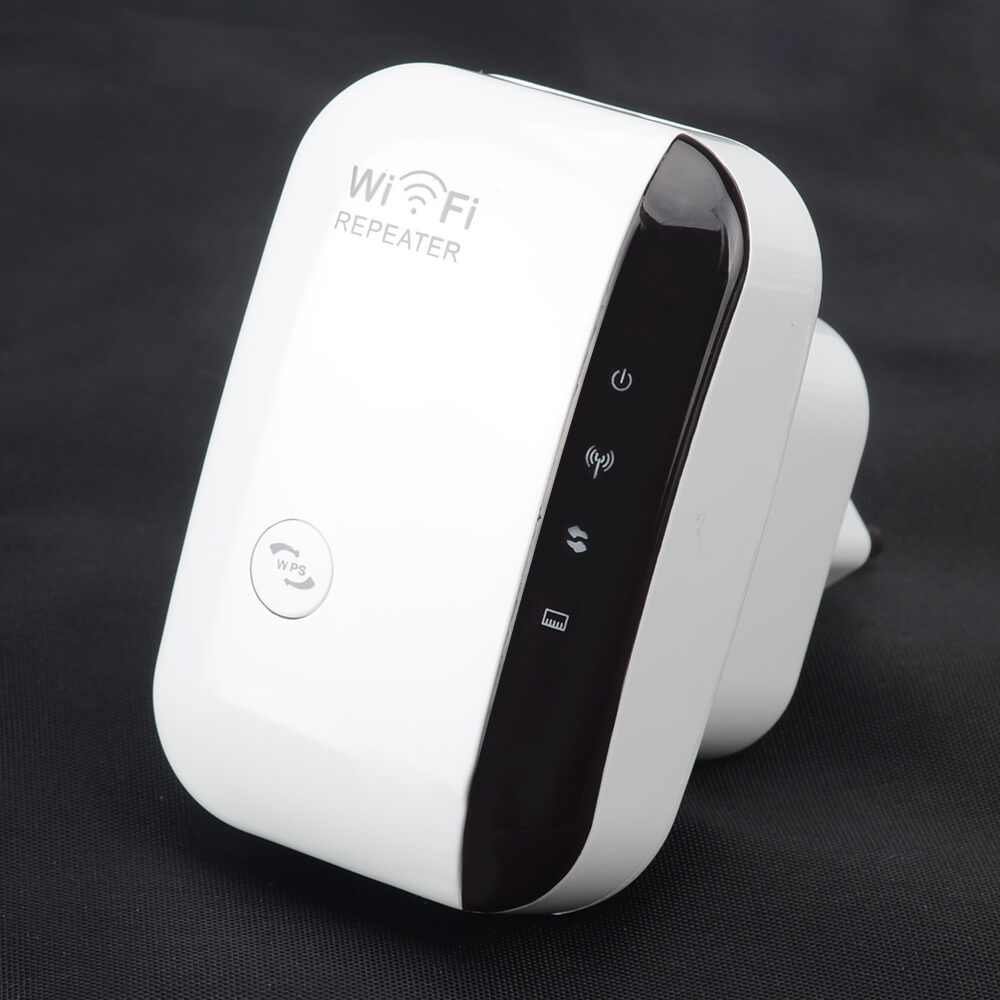

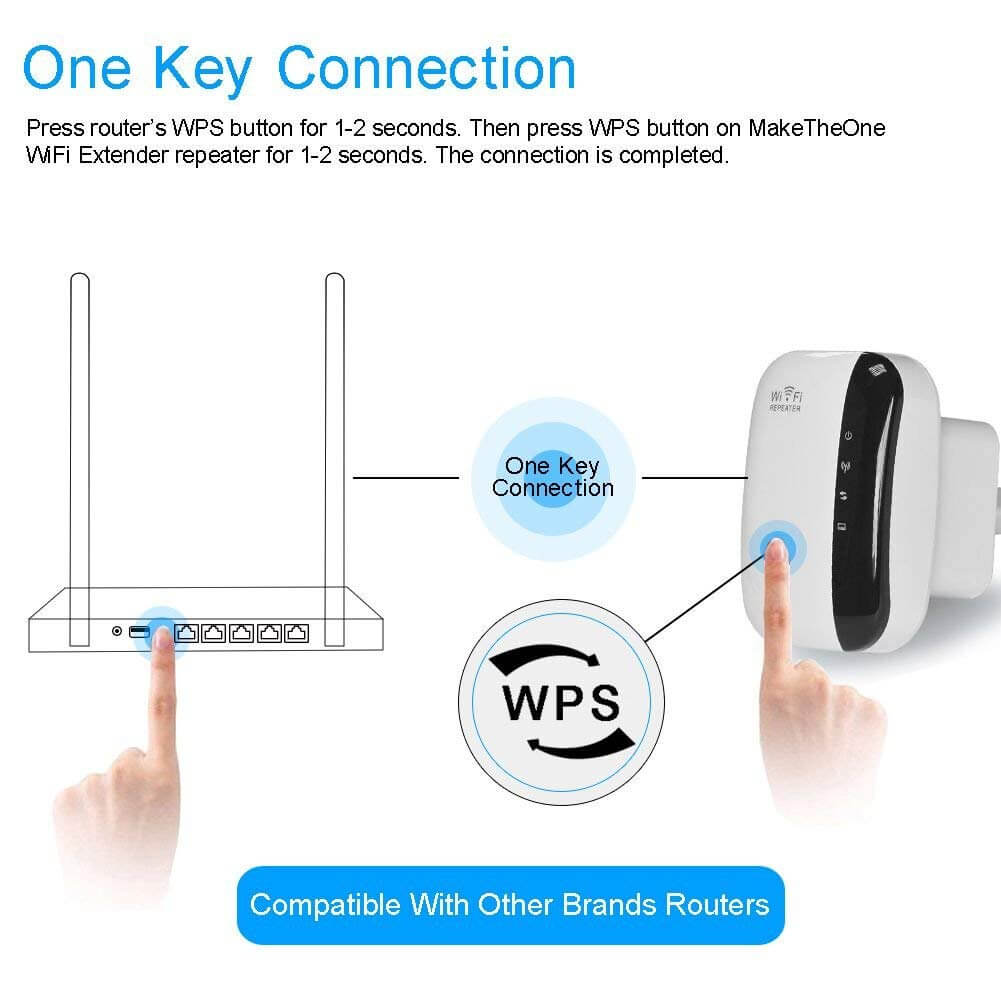

Button WPS Button, Reset Button
Antenna 2 * Internal external

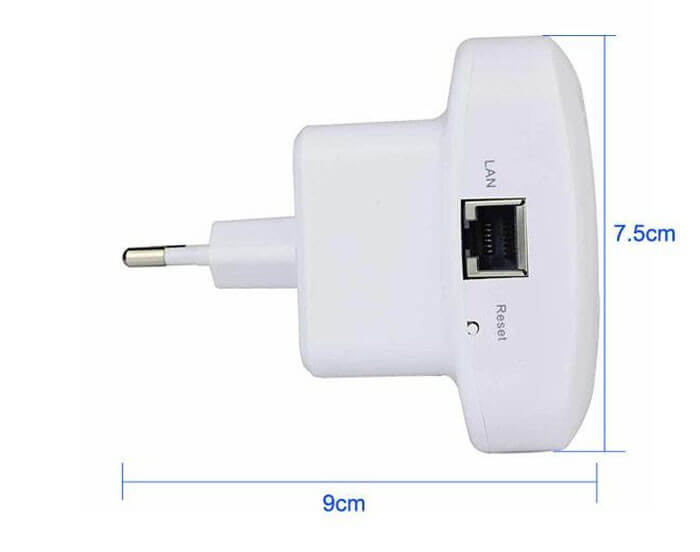

Dimensions ( W x D x H ) 80.2 x 52.5 x 57.3.0mm

WIRELESS FEATURES

Frequency 2.4~2.4835GHz
Signal Rate Up to 300Mbps (dynamic)
Reception Sensitivity 270M: -69dBm@10% PER
Transmit Power < 20 dBm (EIRP)
Wireless Modes Repeater/AP
Wireless Security 64/128/152-bit WEP
WPA-PSK / WPA2-PSK

OTHERS

Package Contents1xWireless-N Repeater/AP
1xRJ-45 Ethernet Cable
1xQuick Installation Guide
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

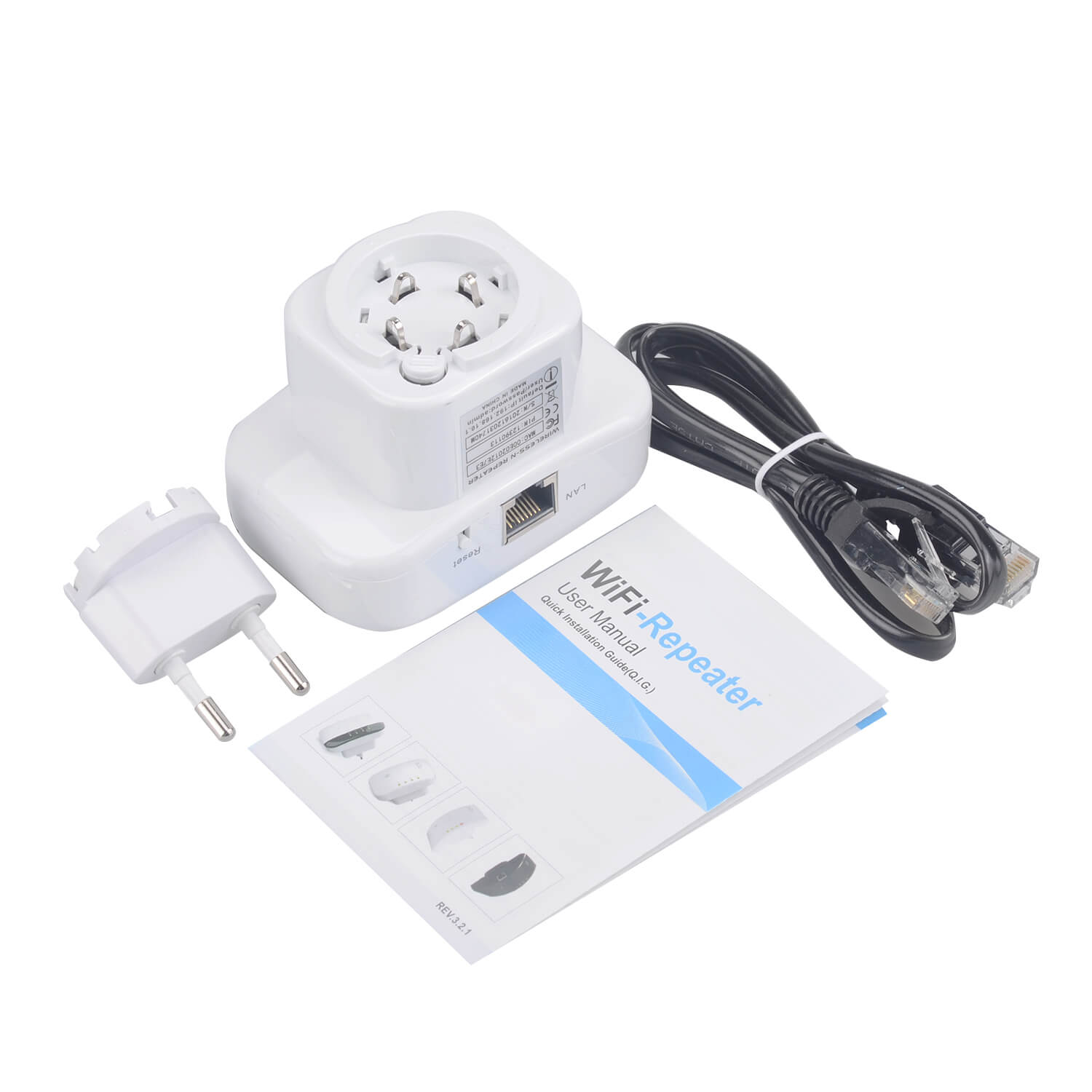

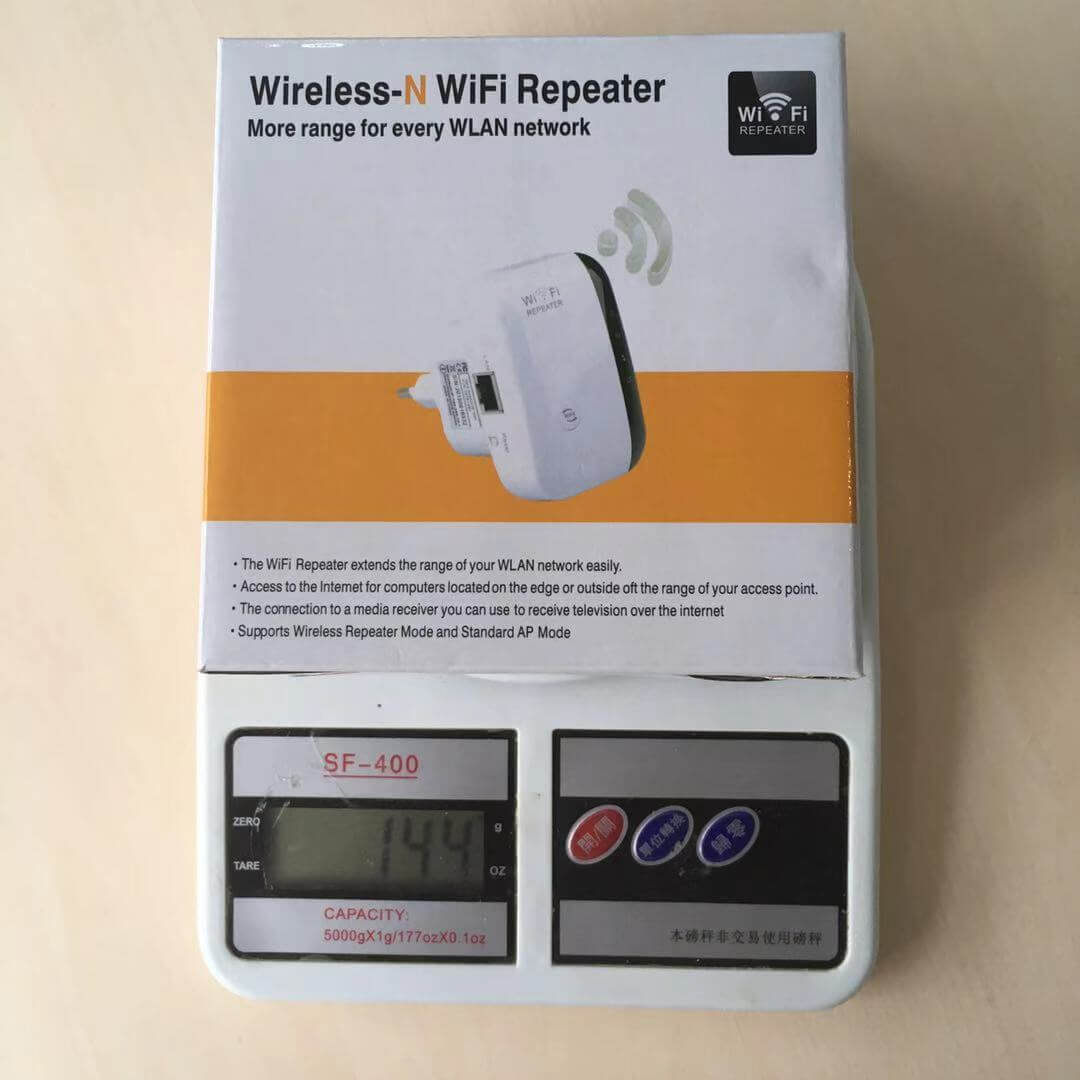

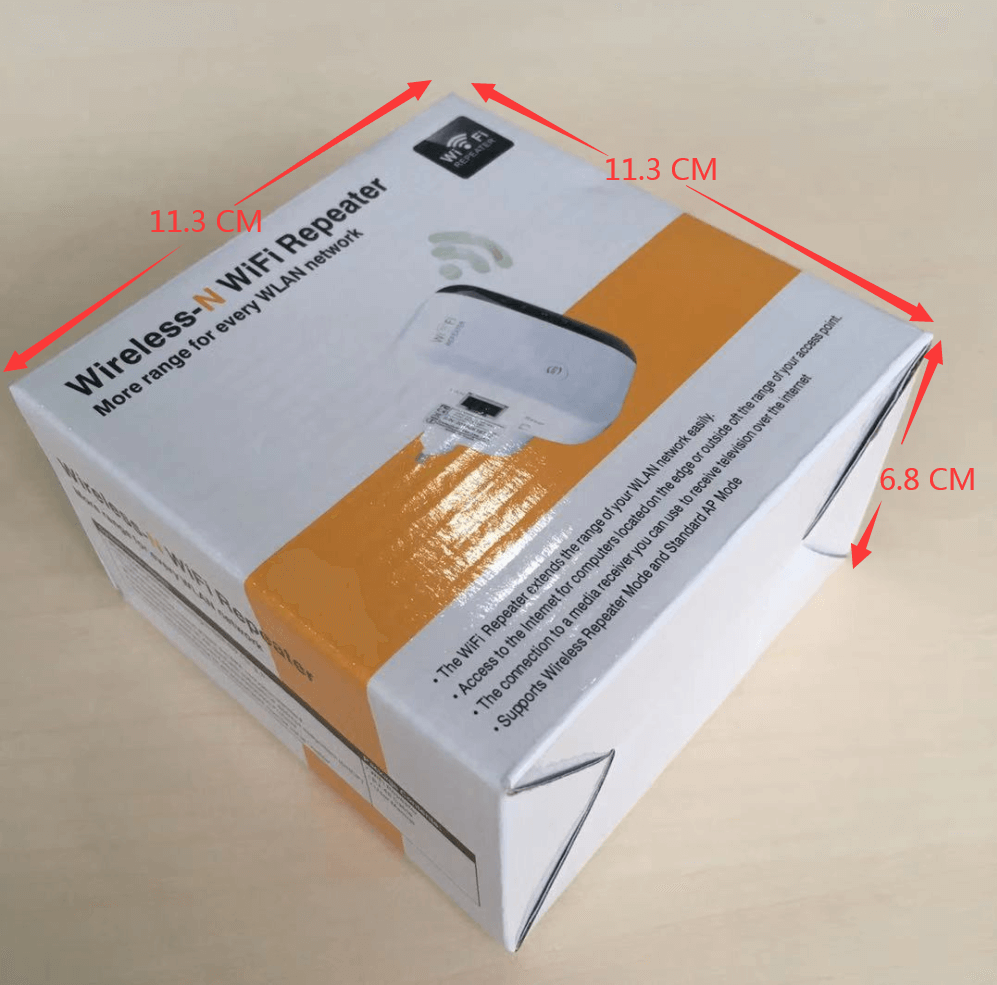

Package

1 x Wireless WiFi Repeater
1 x RJ-45 Networking Cable
1 x Quick Installation Guide

Note:
In order to protect the life of the repeater, reduce the loss of product use. Please do not use the repeater for a long time(more than 24 hours ). When you do not need to use it, please take it out from the power supply.

Q&A

A1. Please check whether the second light on the repeater is flicking/blinking/flashing under powered. If no, please long press the reset button for 10 seconds to reset the repeater first.

A2. Please change another browser and try again , such as Google Chrome / Firfox. If you set up on computer, please check the IP address on your computer, detail see instruction page 10.

A3. Please check whether you enter the same password as your router, and check is there any special characters in it, such as ~!@#$%^&*(). If yes, please change your router password. Repeater can not identify special characters.

A4. Please check whether the repeater is working on the same outlet with other differenet device, It is better the repeater working on the outlet individually.

A5. Please check whether the wireless indicator( second indicator light ) flicking/flashing/blinking under powered. If no, please reset the repeater.

A6. Long press the reset button for 10 seconds under powered.
